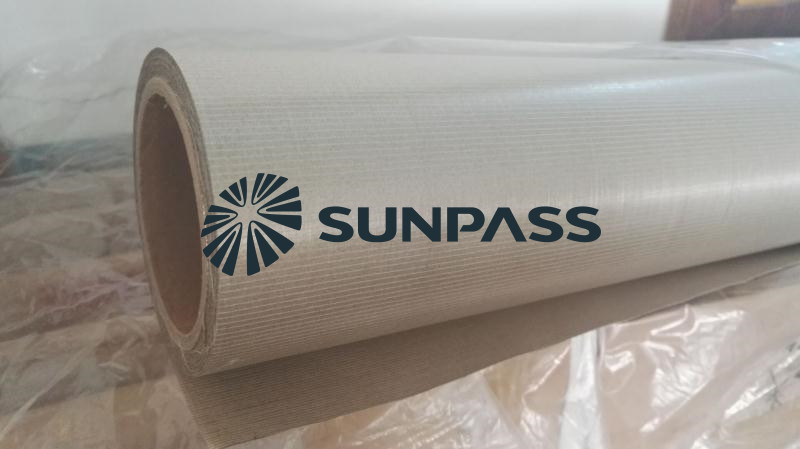

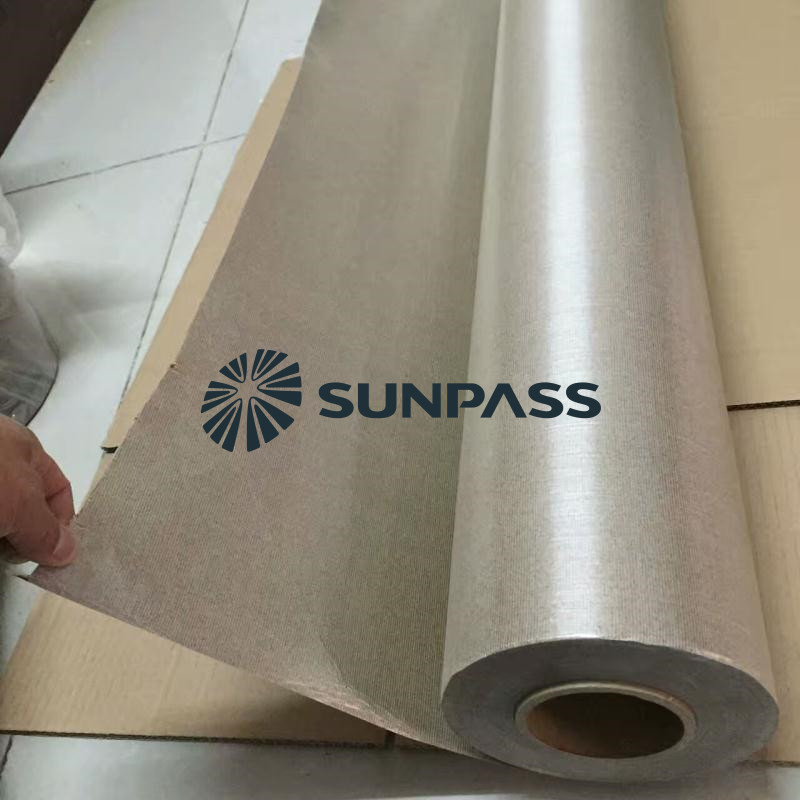

The SunPass Phlogopite Mica Soft Sheet is meticulously crafted from expanded mineral mica and bi-soluble fibers, intricately reinforced with a tanged stainless steel foil. Its primary characteristic lies in its exceptional thermal resistance, making it an ideal substitute for expanded graphite in oxidizing environments. The choice of mica sheet for a specific application is determined by the type of material required: either Muscovite or Phlogopite. Additionally, the thickness of the mica sheet is tailored according to the level of heat resistance necessary. Customized to cater to diverse needs, the sheets can be procured in a range of sizes and surface smoothness grades.
SunPass Phlogopite Mica Soft Sheet Application :
For Arc chutes, Bus bar support, Resistor bank, molding plates, Dynamic braking resistors, furnace lining, resistor heat dissipaters, Insulation of platen in heated hydraulic presses, Induction furnace.
SunPass Phlogopite Mica Soft Sheet Specification:
Property |
Data |
Temperature Range (°C) |
Up to 1000°C |
Pressure Range (bar) |
Up to 5 bar |
Density (g/cm3) |
2.1 g/cm3 |
Compressive strength at 20°C (N/mm2) |
≥400 |
Tensile Strength (Mpa) |
20 |
Recovery |
35% |
Misture Content |
< 3% |
Weight Loss @ 550°C for 4 Hrs |
< 1 % |
Water Absorption after 24 hrs |
< 0.50 % |
Ignitiaon loss @ 800°C |
< 5% |
Sunpass Sealing Tech since1979, specializes in producing high quality sealing and thermal insulation products.
Sunpass Sealing Tech Phlogopite Mica Soft Sheet can be customized in size according to customer needs. It is a type of mica product that is made from phlogopite mica, a mineral that belongs to the mica group of silicate minerals. Phlogopite is known for its excellent physical and chemical properties, which make it suitable for a wide range of applications.
