17-11-2022

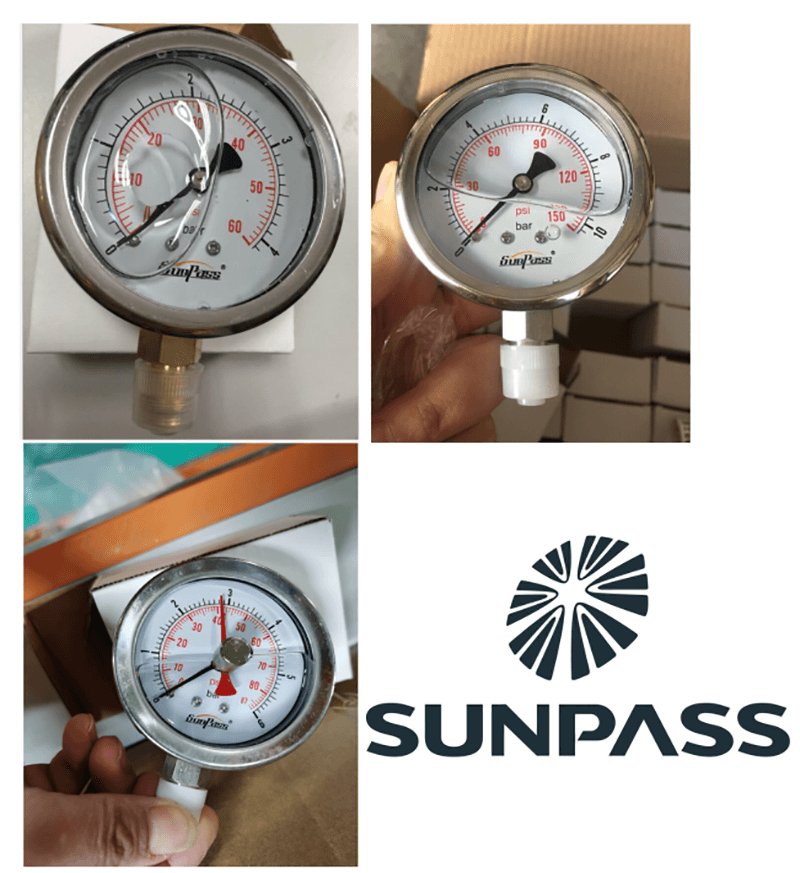

Description: Case Nominal Diameter: 50mm, 63mm Case Material: Stainless Steel Movement: Stainless steel or brass internal parts depending on request Connection: Bottom Connection, Center Back Male Connection depending on request Inlet Thread: 1/4" BSP Filled oil: Glycerine Dual pressure scale, bar & psi Aluminum pointer
Service capabilities:
CODE	DESCRIPTION
MG00001	63mm/0-7bar/psi/brass bottom connection/glycerin / 1/4”bsp
MG00002	63mm/0-7bar/psi/full SS bottom connection/glycerin / 1/4”bsp
MG00003	63mm/0-6bar/psi/brass bottom connection/glycerin / 1/4”bsp
MG00004	63mm/0-10bar/psi/brass bottom connection/glycerin / 1/4”bsp
MG00005	63mm/0-6bar/psi/full SS bottom connection/glycerin / 1/4”bsp
MG00006	63mm/0-40bar/psi/brass bottom connection/glycerin / 1/4”bsp
MG00007	63mm/0-100bar/psi/brass bottom connection/glycerin /1/4”bsp with drag-pointer
MG00008	63mm/0-100bar/psi/full SS bottom connection/glycerin / 1/4”bsp with drag-pointer
MG00009	63MM/-1-7bar/psi/full SS bottom connection/glycerin / 1/4”bsp
MG00010	50mm/0-7bar/psi/brass bottom connection/glycerin / 1/4”bsp

For more details, please visit

Pressure Gauge:

Description:
SUNPASS 4"DN 100 thermometer is designed to be fitted on tank container in order to measure temperature.
Feather:

	Indication Range	-40°Cup to +65°(outdoor use)
	Case Nominal Diameter	φ100mm(OD) ≤φ160mm（ID）
	Case Material	SS 304
	Hole Quantity	3 pieces
	Hole Diameter	≥φ4.5mm
	Accuracy Grade	1.5% (±3℃)
	Temperature Probe Size	≥φ8mm
	Immersion Tube Length	≥250mm
	Antivibration	liquid and bumper
	Bumper Material	SS 304
	Bumper Quantity	2 pieces
	Bumper Diameter	φ3.5mm
	Standard	JB/T8803-1998 GB3836-83

Ordering and Code Information

	SUNPASS CODE	DESCRIPTION
	TG10B/40160/027/R	Bottom Connection, -40~160℃, >130℃ red
	TG03B/40160/027	Bottom Connection, -40~160℃
	TG09B/40180/200	Center Connection, -40~180℃
	Other sizes and scales available on request
