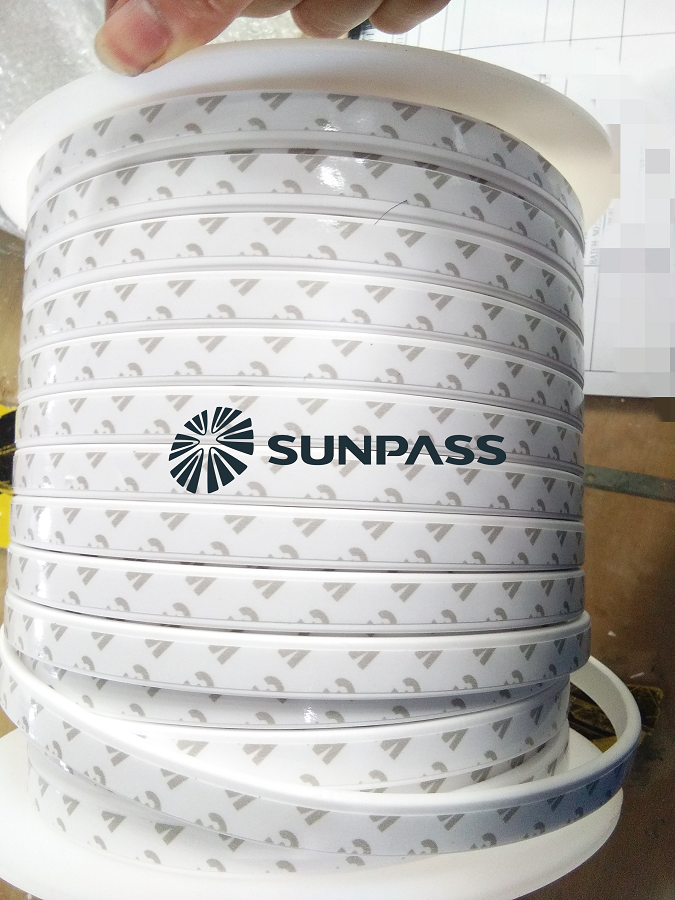

Introduction of Expanded PTFE Joint Sealent

Expanded PTFE Joint Sealent is a very novel and unique sealing material manufactured using a unique processing technology. Expanded PTFE Joint Sealent is a continuous strip of white pure polytetrafluoroethylene product with good flexibility, compression resilience, creep resistance, high and low temperature resistance, excellent corrosion resistance, and no aging. Self-lubricating. It has excellent sealing performance and is extremely convenient to install and use. It is an ideal sealing material for chemical, pharmaceutical, petrochemical, food and beverage, electronics, electric power, metallurgy, shipbuilding and other industries.

Expanded PTFE Joint Sealent technical parameters:

·Using temperature -268～+316℃
·Using pressure <20 MPa ·Applicable medium: All chemical substances except elemental fluorine and molten alkali metals.
·Density 0.6～0.8 g/cm3 Purpose of sealing tape ·Sealing of various enamel linings, glass linings, plastic linings, rubber linings, graphite linings, and flange surfaces of stainless steel and titanium steel towers, heat exchangers, reactors, etc.
·Flange face sealing of various pipes and pipe fittings.
·The surface processing accuracy of Expanded PTFE Joint Sealent is poor, the uneven area is large, the shape is irregular, and the bolt tightening force is not easy to use or is not suitable for flange surface sealing of large-diameter equipment that is too large.
·Sealing of highly corrosive media and fluids that cannot be contaminated at all.

Expanded PTFE Joint Sealent Excellence:
·Excellent sealing performance. Expanded PTFE Joint Sealent is highly compressible and can easily fill the cavities and grooves on the sealing surface, blocking interface leakage. It also has the characteristics of rebound expansion when subjected to tension. Therefore, the higher the internal medium pressure, the greater the sealing force. The larger it is, this is the magical property of the sealing tape.
·Easy and quick to use. Cut a piece of PTFE tape of the required length, and just cross and overlap the two ends to form a sealing ring of any size and shape. The adhesive tape attached to one side of the sealing tape can fix the sealing tape on the sealing surface of the equipment to facilitate installation, and then only a small bolt tightening force (minimum pre-tightening force is 50Kgf/cm2) can form a good seal. of seal.
How to use Expanded PTFE Joint Sealent:
Clean and dry the sealing surface of the Expanded PTFE Joint Sealent, select a PTFE tape of a certain width, remove the protective paper of the adhesive tape, stick the Expanded PTFE Joint Sealent to the outer edge of the sealing surface, and cross the two ends at a certain bolt. Stack, with more than 2cm left on each side outside the intersection (Note: When used on a flat flange, the two ends must cross and overlap. When used on a grooved flange, they can be stacked in parallel, with an overlap of more than 2cm.), close the corresponding Sealing surface, tighten each bolt evenly, the intersection of the two ends will also be pressed to the same thickness as other parts, there will never be leakage at the intersection.

Sunpass specializing in the production of PTFE Joint Sealent with more than 40 year experience, has a high reputation and influence in the sealing industry at home and abroad. It has a modern professional factory building of 12000M2, and has more than 20 production lines for PTFE Producys, such as: expanded PTFE tape, expanded PTFE sheet, PTFE virgin sheet, PTFE gasket, PTFE rod, PTFE tube, etc. Products are widely used in petrochemical, oil and gas, electric power, smelting, mining, shipbuilding, paper making, food and machinery industries.
