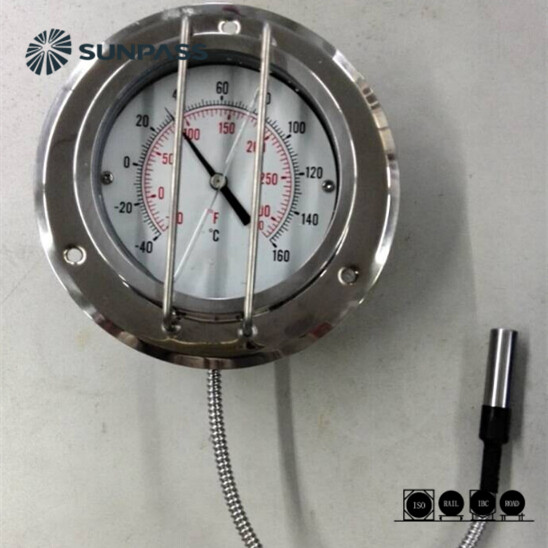

SUNPASS 4" DN100 Thermometer is a temperature measuring device specially designed for use in tank containers. It is relatively simple to install, just need to place it outside the tank container. The thermometer uses advanced temperature sensor technology for high accuracy and reliability. It can monitor the temperature inside the tank container. In addition, the thermometer also has the characteristics of explosion-proof, anti-corrosion, high temperature resistance, etc., and can adapt to various harsh environmental conditions to ensure the long-term stable operation of the tank container.
Indication Range |
-40°Cup to +65°(outdoor use) |
Case Nominal Diameter |
φ100mm(OD) ≤φ160mm(ID) |
Case Material |
SS 304 |
Hole Quantity |
3 pieces |
Hole Diameter |
≥φ4.5mm |
Accuracy Grade |
1.5% (±3℃) |
Temperature Probe Size |
≥φ8mm |
Immersion Tube Length |
≥250mm |
Antivibration |
liquid and bumper |
Bumper Material |
SS 304 |
Bumper Quantity |
2 pieces |
Bumper Diameter |
φ3.5mm |
Standard |
JB/T8803-1998 GB3836-83 |
|
|
SUNPASS CODE |
DESCRIPTION |
TG10B/40160/027/R |
Bottom Connection, -40~160℃, >130℃ red |
TG03B/40160/027 |
Bottom Connection, -40~160℃ |
TG09B/40180/200 |
Center Connection, -40~180℃ |
Other sizes and scales available on request.
