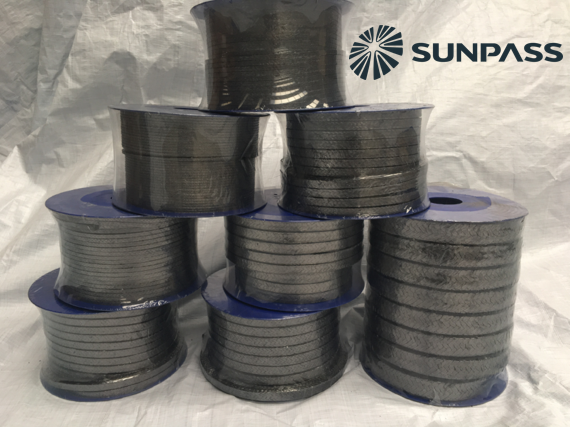

TOP SEALING Pure Flexible Graphite Packing is made from expanded graphite yarn braided into through all kinds of technology of braiding. They are almost suitable to all media, such as hot water, steam, acids, organic solvents, hydrocarbons, low temperature liquids, etc. According to different requirements, carbon fiber, copper wire, 304, 316L, inconel wire and other materials can be used for reinforcement. The sealing cap ability is more better and safety, it is the most effective composite parts for solving problems, Pure Flexible Graphite Packing is very popular.
Pure Flexible Graphite Packing Features:
1.Good self-lubrication
2.Good Thermal conductivity
3.Small friction coefficient
4.Strong versatility
5.Good flexibility
6.High strength
Pure Flexible Graphite Packing Application:
1.Petroleum equipment
2.Power plants
3.Chemical
4.Steel mills
Pure Flexible Graphite Packing Specification:
|
|
|
|
Pressure: bar |
20 |
250 |
500 |
Speed: m/s |
22.8 |
2 |
1.5 |
PH Range |
0-14 |
||
Temp.℃ |
-200-650C |
||
Density: (g/cm³) |
1.1-1.50 |
||
Size |
1/8"-2" |
||
3mm-50mm |
