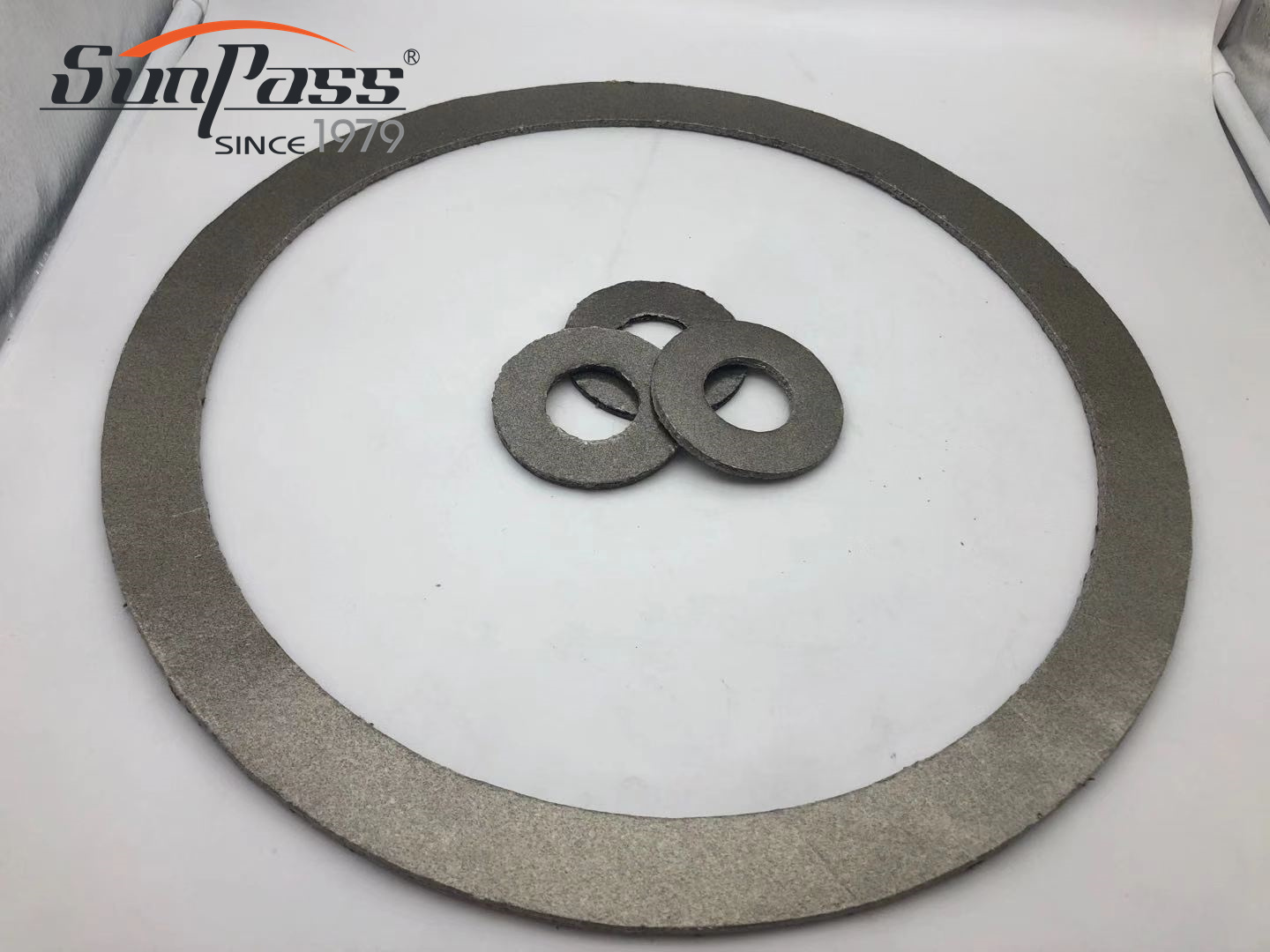

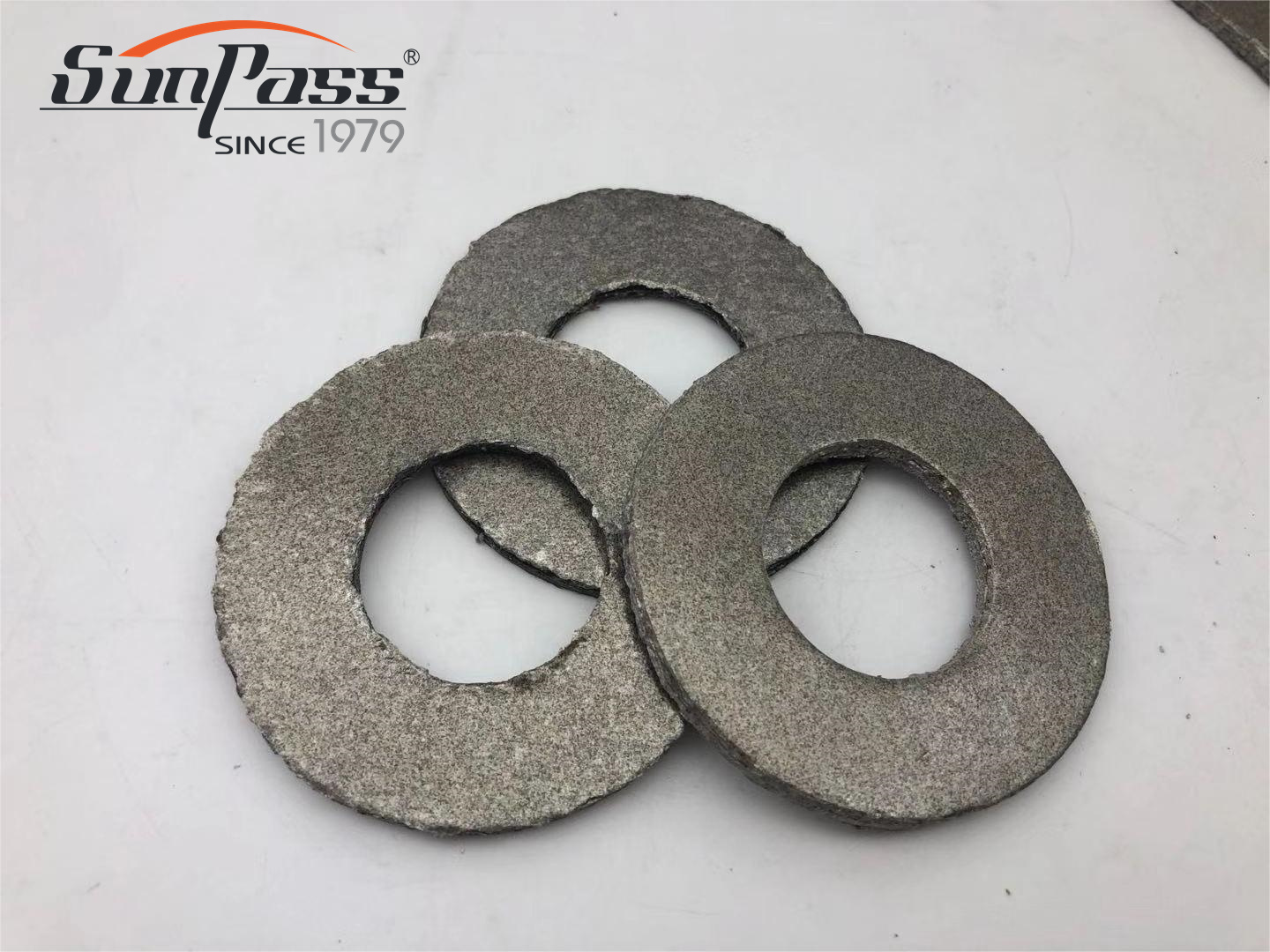

MICA SHEET GASKET

Description:

TOP SEALING MICA SHEET are made of expanded mineral mica and bi-soluble fibres, reinforced with a tanged stainless steel foil. The main feature is the high thermal resistance and the use in oxidizing environments, to replace expanded graphite. Depending on application, the correct mica sheet for an application depends on the material: Muscovite, or Phlogopite. Depending on the level of heat resistance needed, the thickness of mica sheet will also vary. It can be ordered in various sizes and different degrees of smoothness based on the needs of the customer.

Detail Image

Product Details

1. Construction of flange gaskets

2. Usable in sectors such as thermal power plants, marine industries, heat exchangers, gas exhaust pipes, valves.

More Styles

Application Data

Advantages

Video

Comparison Vision

Data	Unit	Non Asbestos Beater Sheet	Vulcanized non-asbestos beater sheet
Color	Grey, Black, other color on request
Dendisty	G/CM3	0.9-1.1	1.2-1.4
Thickness	MM	0.3-2.0MM	0.3-2.0MM
Width	MM	500MM; 1000MM
Length	MM	500MM; 1000MM; 1200MM; 1500MM
Tensile strength	≥Mpa	12.7
Compressibility	%	15±5
Recovery	≥%	45
Stress relaxation	≤%	35
Weight increase (in oil)	≤%	35
Thickness increase (in oil)	≤%	15

Simply you can wholesale MICA SHEET GASKET direct from manufacturers.
