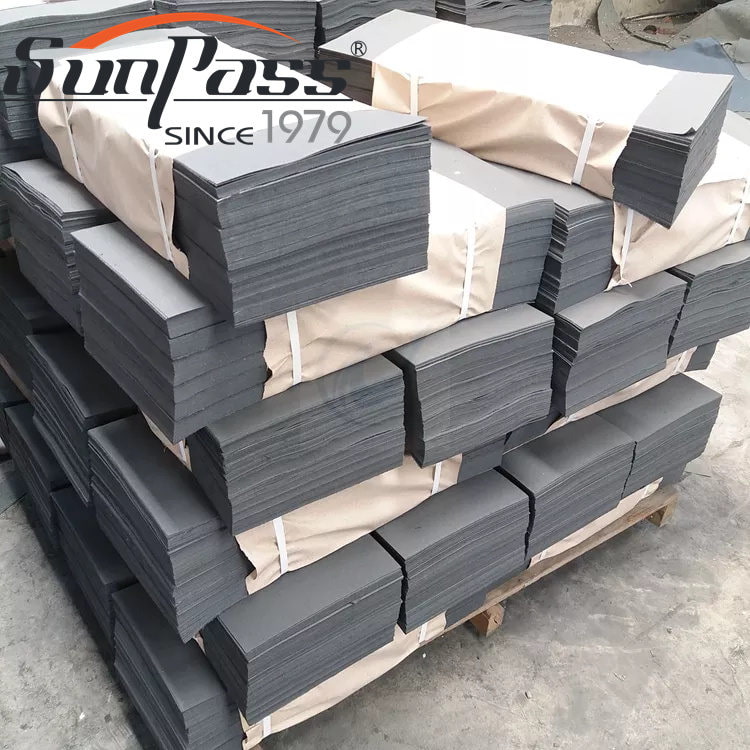

Non Asbestos Beater Sheet

Description:

TOP SEALING Non Asbestos Beater Sheet, is made from synthetic emulsion, plant fiber and filling material. It is a high performance medium density material for use as soft gasket manufactured from a blend of cellulose and aramid fibers combined with reinforced inorganic filler, imparts an excellent sealing at medium flange loads. In addition, the inside of gasket can properly swell to meet oil, that make up of the shortcoming that procession machining precision is not enough, which affected self-sealing. It can be Vulcanized non-asbestos beater sheet with smooth faces, also available with anti-stick or graphite coating.It has good compressibility and coefficient of resilience.

Detail Image

Product Details

1. Used in Automobile, farm machinery, motors, engineering etc.

2. it can be used in oil system and water supply system at temperature 150 deg.

More Styles

Application Data

Advantages

Video

Comparison Vision

Data	Unit	Non Asbestos Beater Sheet	Vulcanized non-asbestos beater sheet
Color	Grey, Black, other color on request
Dendisty	G/CM3	0.9-1.1	1.2-1.4
Thickness	MM	0.3-2.0MM	0.3-2.0MM
Width	MM	500MM; 1000MM
Length	MM	500MM; 1000MM; 1200MM; 1500MM
Tensile strength	≥Mpa	12.7
Compressibility	%	15±5
Recovery	≥%	45
Stress relaxation	≤%	35
Weight increase (in oil)	≤%	35
Thickness increase (in oil)	≤%	15

Simply you can wholesale Non Asbestos Beater Sheet direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Non Asbestos Beater Sheet suppliers known by the world since 2000.
