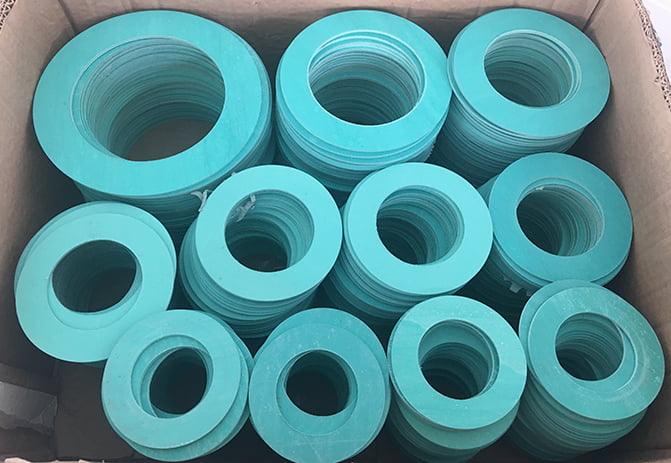

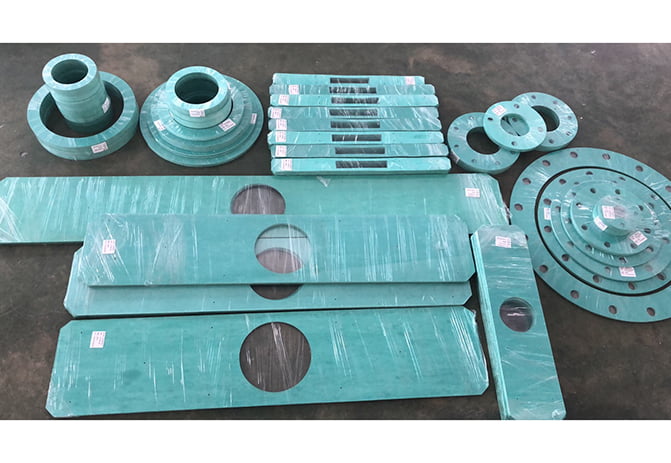

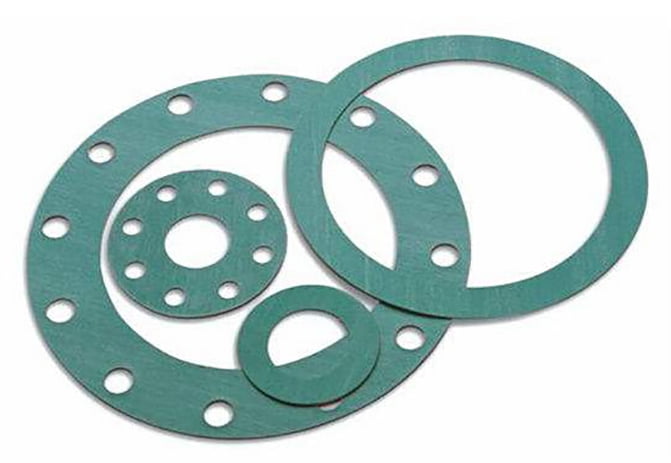

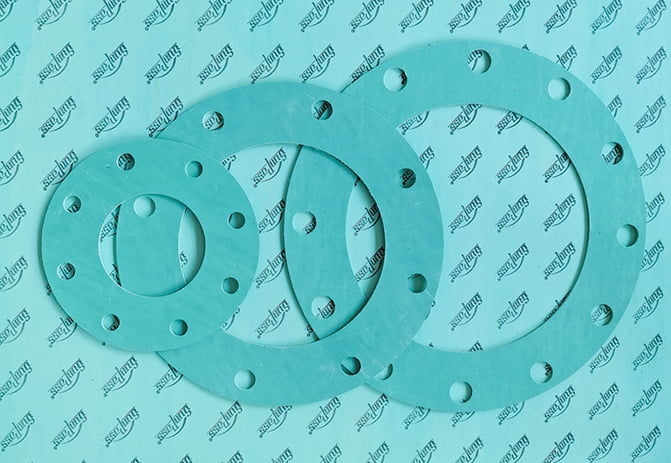

TOP SEALING NON ASBESTOS gaskets are cutted from high quality non-asbestos sheets. TOP SEALING non asbestos gaskets are designed for a wide range of applications in petrochemistry, chemistry, industrial and other equipment requiring specific sealing solutions. A comprehensive range of grades is available covering a wide spectrum of applications.
| Item | NNY150 | NNY250 | NNY300 | NNY350 |
| Temperature C | 150 | 250 | 300 | 350 |
| Tensile strength MPa≥ | 8 | 10 | 12 | 15 |
| Aging Coefficient ≥ | 0.9 | |||
| Density g/cm³ | 1.9-2.0 | |||
| Compressibility % | 12±7 | |||
| Rebound degree | 40 | 45 | 50 | 50 |
| Pliability | ||||
| Stress-relaxation≤ | 40 | 40 | 30 | 30 |
| Oil sealing With the temperature of 15℃to 30℃,.75﹟aviation gasoline for 30 min |
10 MPa pressure for 30 min No leaking |
|||
| 40 | 30 | 25 | 25 | |
| 5to20 | 5to20 | 5to18 | 5to18 | |
| No bubble | ||||
| With the temperature of 15 to 30 ℃,dipped in No.75 aviation oil for 5h,then taken out and laid for 5min. | 5 | 6 | 8 | 10 |
| 5to25 | 5to25 | 5to20 | 5to20 | |
| No Crack | ||||
Simply you can wholesale NON-ASBESTOS RUBBER GASKET direct from manufacturers.
1. Good seal ability
2. Good flexibility
3. Highly compressible
4. Resistant to creep and cold flow
5. Easy to cut and install
6. Low compressive load to seal
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and NON-ASBESTOS RUBBER GASKET suppliers known by the world since 2000.
