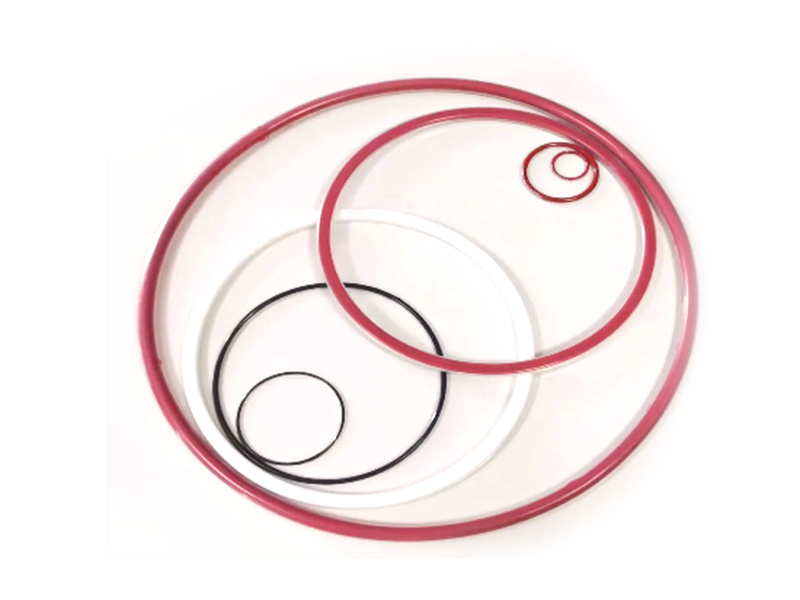

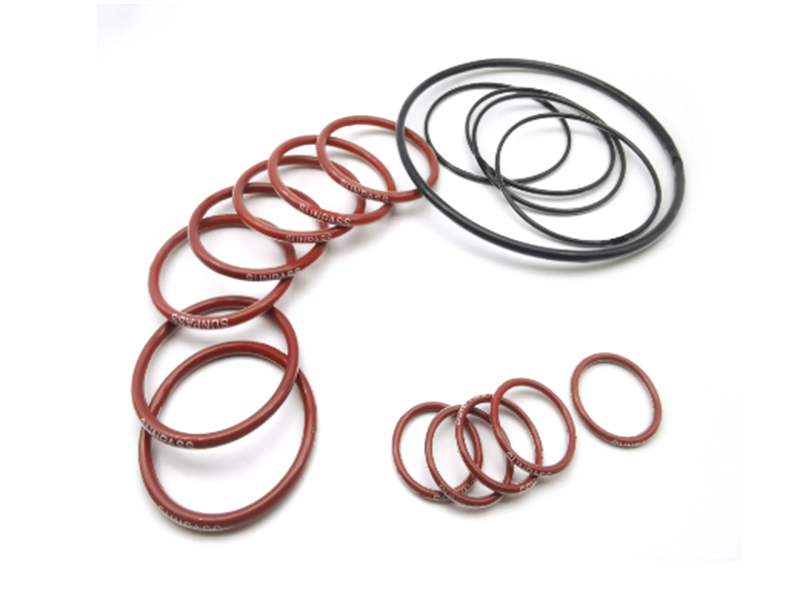

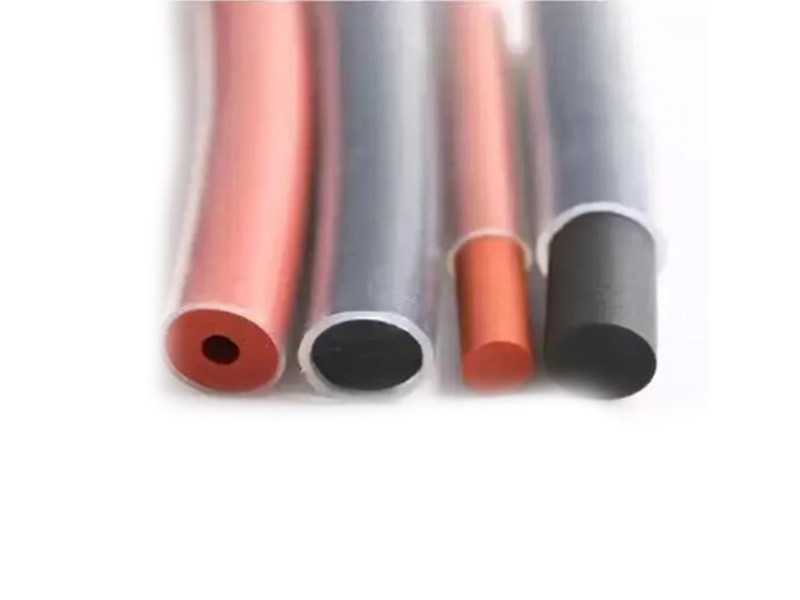

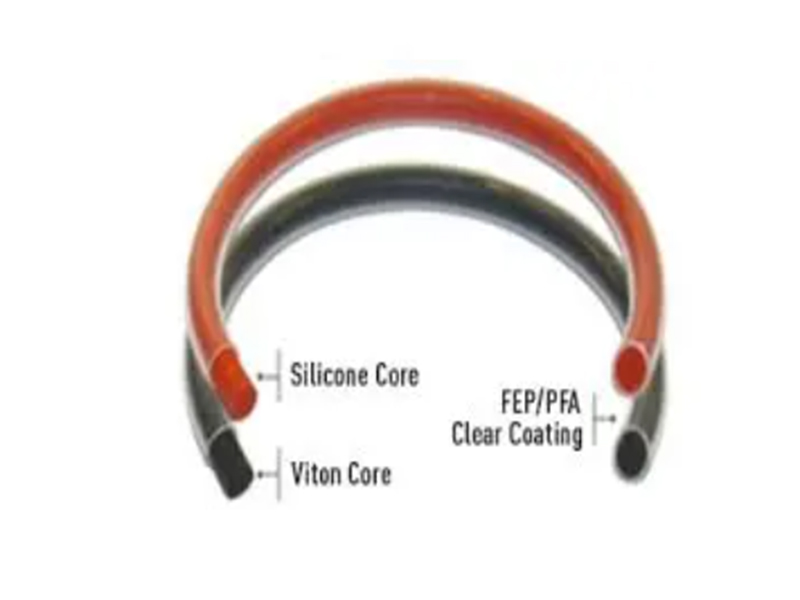

SUNPASS FEP-/PFA-encapsulated O-rings are constructed with a resilient elastomer core, surrounded by a flawlessly bonded shell of modified PTFE. The core, fashioned from FKM (Viton), ensures consistent pretensioning at the seal interface. The unbroken casing is made from FEP (fluorinated ethylene propylene) or PFA (perfluoroalkoxy copolymer), providing dependable sealing and robust protection against corrosive substances. This design yields efficacy akin to that of pure PTFE materials.
| Items | Data | ||||
| Material | PTFE+ Silicon/Viton Rubber | ||||
| CROSS-SECTION(MM) | 1.5-31.75 | ||||
| ID VMQ/FKM (MM) | 16-370 | ||||
| HOLLOW CORE VMQ (MM) | 20-300 | ||||
| Encapsulation Structures | Hollow core | ||||
| Tensile Strength(psi) | 5000 | ||||
| Density of FEP(g/cm*) | 2.2 | ||||
| Temperature Range | -60C to +205℃(-76°F to +401°F) | ||||
| Hardness | 70 to 80 Shore A | ||||
1. Automotive Industry
2. Aerospace
3. Electronic Equipment
4. Industrial Equipment
5. Medical Equipment
Simply you can wholesale PTFE Encapsulated Orings direct from manufacturers.
1. Superior sealing performance
2. Simple structure and compact installation
3. Built-in sealing ability
4. Consistent sizing and groove specifications
5. Broad application scope
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and PTFE Encapsulated Orings suppliers known by the world since 2000.
