Home / Products / Gasket and Sheet / Sealing Tape / CERAMIC FILLER

CERAMIC FILLER

Description:

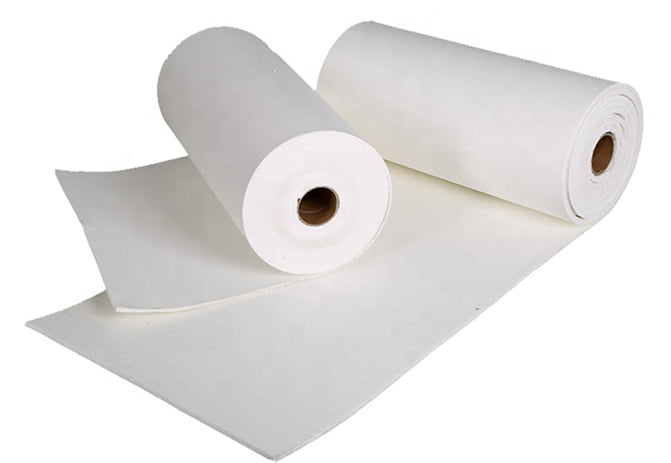

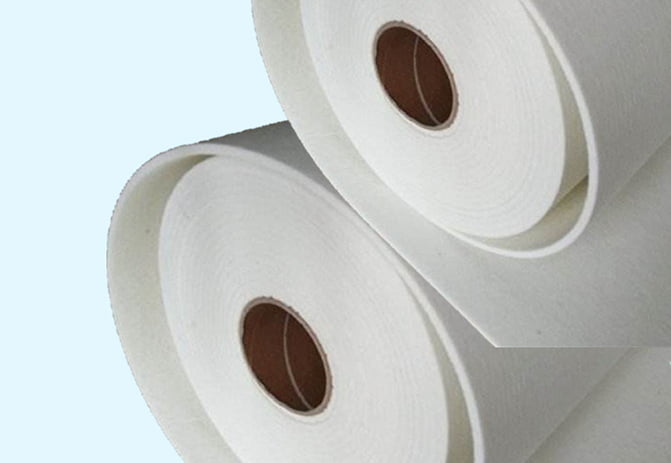

1.TOP SEALING ceramic fiber Filler is cutted from ceramic fiber paper, which is used in high-temperature insulating fields.
2.The advance manufacturing technology makes the distribution of fiber be very even and the paper’s thickness and storage can also be controlled strictly.
3.Ceramic fiber paper is made of refractory ceramic fiber with a little bond which is selected scientifically and controlled strictly.
4.The bond will be completely burnt during the use. The product does not contain asbestos and is perfect material for sealing and insulating.

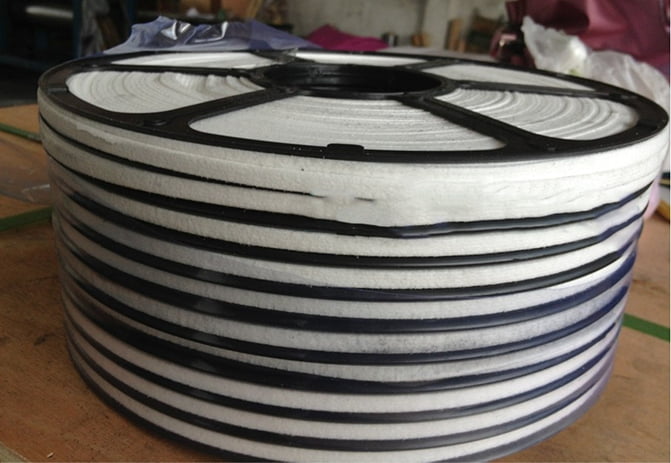

Detail Image

Product Details

Features

· Low thermal conductivity

· Excellent corrosion resistance

· Good for die-cut and automatic stamping

· Light-weight, flexible, good handling strength and good uniformity

Description\Grade		STD	HP	HA	HZ
TENGLONG style		4210STD	4210HP	4210HA	4210HZ
Classification Temperature	English	2300℉	2300℉	2562℉	2606℉
Classification Temperature	Metric	1260℃	1260℃	1350℃	1430℃
Max Operating Temperature	English	1472℉	1922℉	2192℉	2552℉
Max Operating Temperature	Metric	800℃	1050℃	1200℃	1400℃
Density	English	12.5±0.625lb/ft3
Density	Metric	200±10kg/m3
Thickness	English	0.04-0.24
Thickness	Metric	1-6mm
Color		White
Package		Carton box

Remarks: The data above is for reference. The Max. temp. depends on the working conditions.

More Styles

Application Data

Advantages

Video

Comparison Vision

Description\Grade		STD	HP	HA	HZ
TENGLONG Style		4210STD	4210HP	4210HA	4210HZ
Classification Temperature	English	2300℉	2300℉	2562℉	2606℉
Classification Temperature	Metric	1260℃	1260℃	1350℃	1430℃
Chemical Composition	Al2O3	43%	47%	55%	38%
	SiO2	53%	51%	44%	44%
	Fe2O3 + Ti2O3	≤1.2	≤0.3	≤0.3	≤0.2
	CaO + MgO	≤0.3	≤0.3	≤0.3	≤0.2
	NaO + KO2	≤0.5	≤0.3	≤0.3	≤0.2
Thermal Conductivity by mean temp. (250kg/m3)	200℃	0.055~0.065W/m.k.		0.060~0.070W/m.k.
	400℃	0.110~0.120W/m.k.		0.105~0.125W/m.k.
	600℃	0.160~0.170W/m.k.		0.170~0.180W/m.k.
Shrinkage on Heating		800°(1472℉) ×24h ≤-3%	1000°C(1832℉) ×24h ≤-3%	1280°C(2336℉) ×24h ≤-3%	1400°C(2552℉) ×24h ≤-3%
Tensile Strength		≥0.3MPa
Organics Content		≤9
Loss of Ignition		≤10%
LOI		< 9%

Simply you can wholesale CERAMIC FILLER direct from manufacturers.

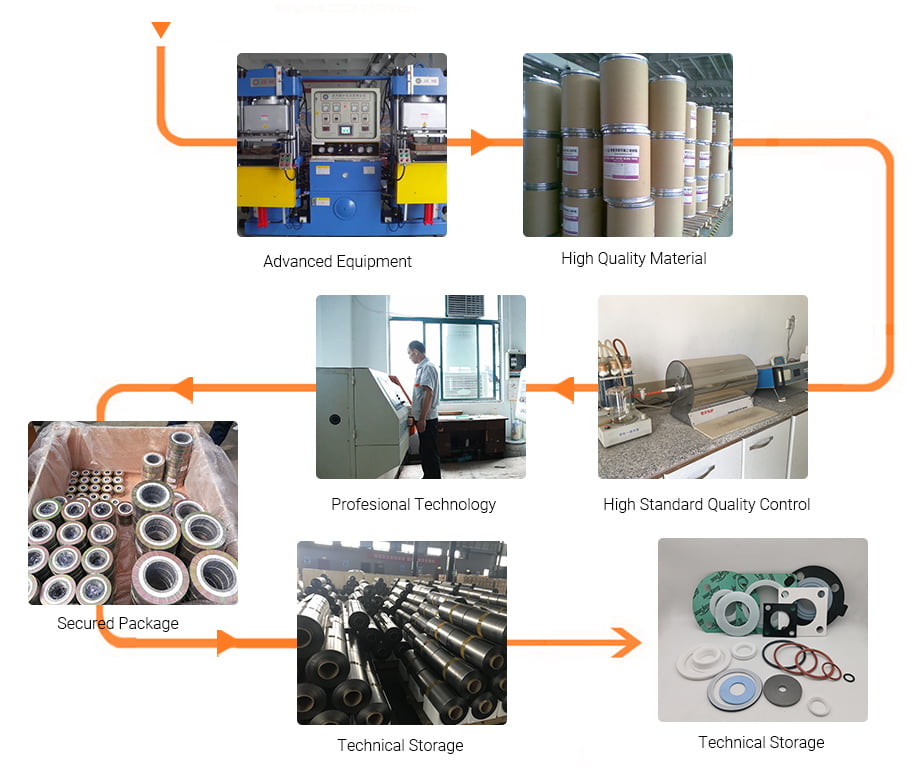

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and CERAMIC FILLER suppliers known by the world since 2000.
