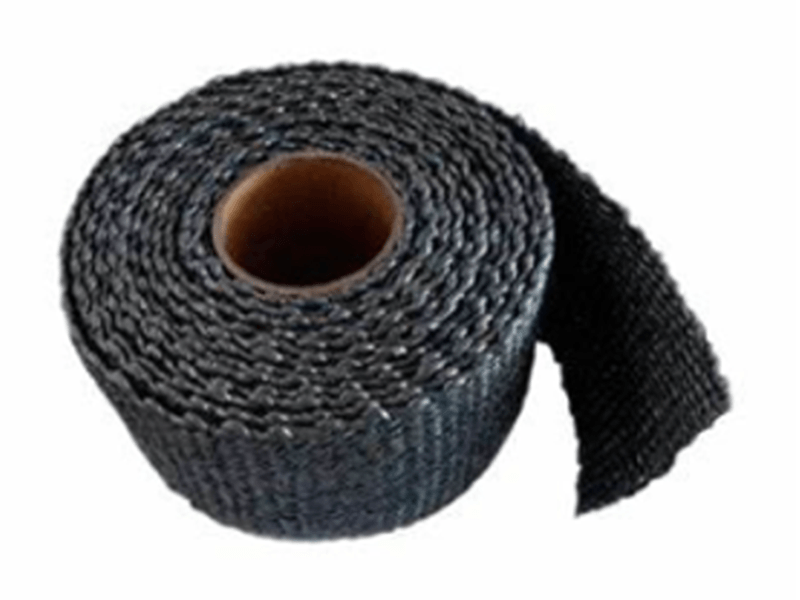

Graphite Braided Tape

Description:

Sunpass Graphite Braided Tape is expertly woven from expanded graphite yarns using a variety of braiding techniques. Its universal applicability spans nearly all media, including hot water, steam, acids, alkalis, organic solvents, hydrocarbons, and cryogenic fluids. This versatility allows it to perform effectively in a wide range of challenging environments.
The tape offers enhanced sealing capabilities, providing superior and secure sealing for improved performance and safety. Recognized as one of the most effective composite components for problem-solving, it stands out in the industry. The pure flexible graphite gasket is particularly sought after, making Sunpass Flexible Graphite Tape an ideal choice for industries requiring reliable sealing solutions. With metallic wire reinforced is available.

Graphite Braided Tape

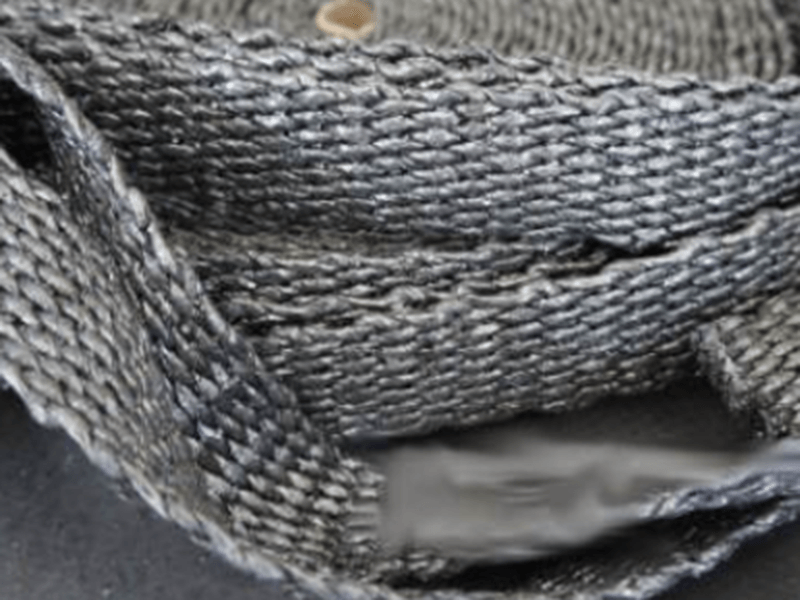

Detail Image

Product Details

Items Data
Thickness(mm) 1.5-6
Width (mm) 25-100
Max. Pressure 100 bar(with wire) /200 bar(with wire)
Temperature℃  -240-550
PH 0-14

More Styles

Application Data
Advantages
Video
Comparison Vision

High-Pressure Vessels and Flanges: Ideal for sealing applications on extremely uneven surfaces, effectively managing high temperatures and pressures.
Heat Exchangers and Boilers: Provides reliable sealing in critical heat transfer systems, ensuring operational efficiency and safety.
Pipes and Doors: Suitable for various piping systems and access points, maintaining integrity under demanding conditions.
Industries: Widely used in sectors such as petrochemical, chemical processing, power generation, mining, and shipbuilding for pipeline and flange connections, as well as in ovens and furnaces.

Simply you can wholesale Graphite Braided Tape direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Graphite Braided Tape suppliers known by the world since 2000.
