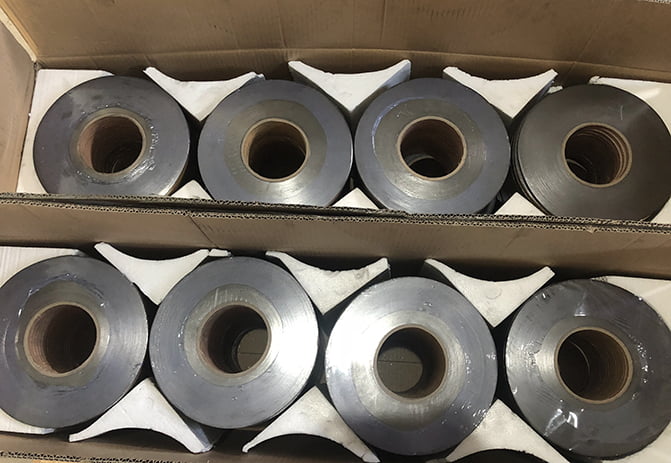

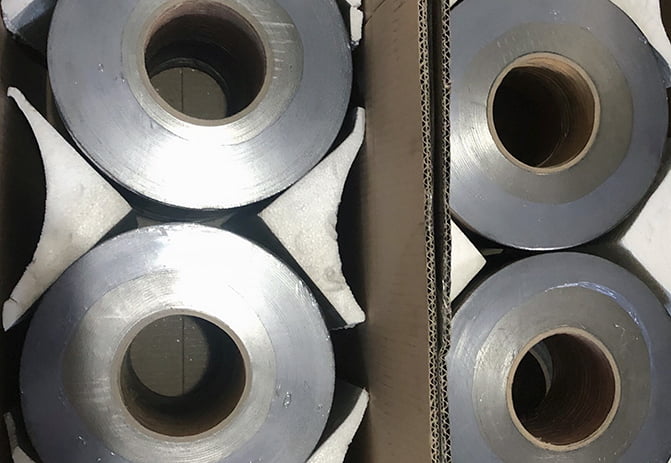

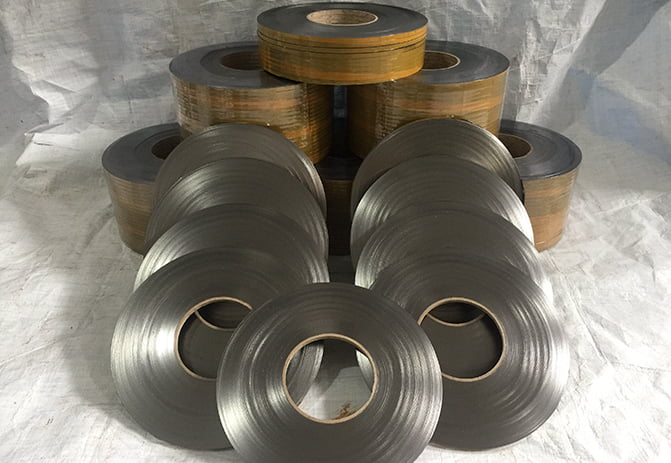

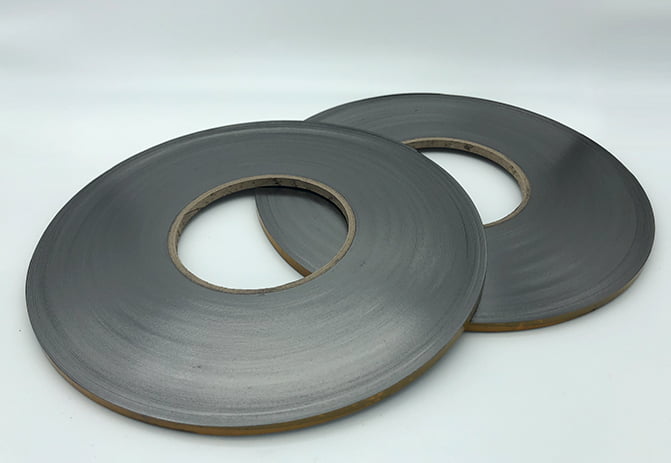

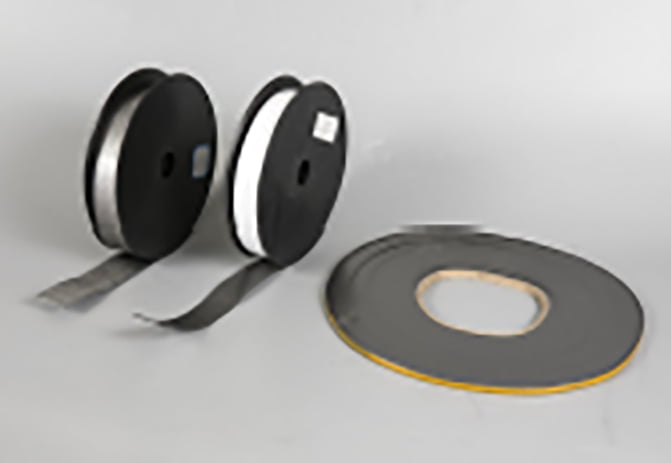

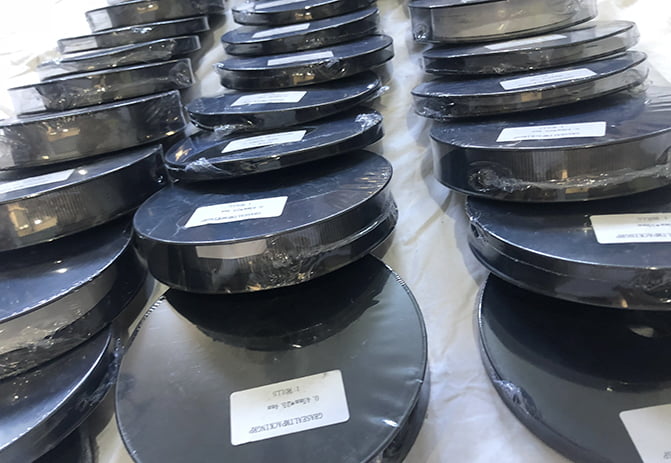

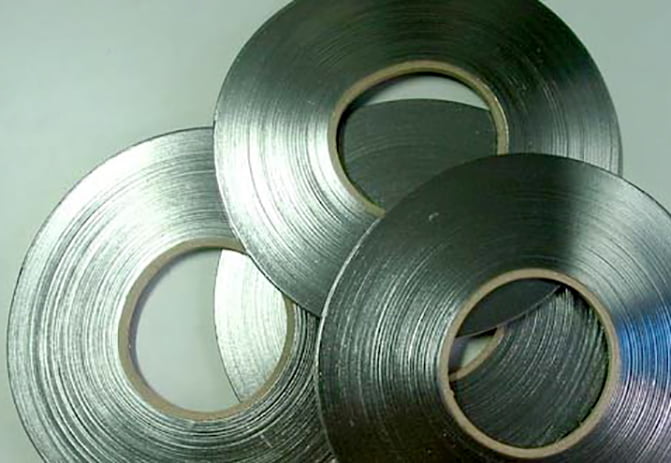

GRAPHITE FILLER

Item

Flexible Graphite Tape

Graphite Corrugated Strip

Graphite Corrugated Tape with Adhesive

Style

8050

8070

8080

Density (kg/m3)

0.7-1.3

1.0-1.3

1.4-1.5

Thickness(mm)

0.1-2.0

0.2-1.5

0.2-1.5

Width (mm)

2.5-600

8-80

8-80

Material

Nature Graphite

Carbon Content(Purity)

99.50%

Working Temperature

-40 to +680 °C

Tensile Strength

>4.9 Mpa

Thermal Conductivity

Through Thickness

36 BTU.in/ft2.h.F(5 W/m.K)

Parallel to Surface

960 BTU.in/ft2.h.F (140 W/m.K)

pH Range

1-14

5.1

Compressibility

35%-55%

Recovery

>9%

Ash Content

<0.5%

TAG(450°C)

<1.0%

Total Sulphur Content

1000ppm

Max Temp. Oxyd Atmosphere

680° C

Max Temp. Non oxyd Atmosphere

3000 °C

Chloride content

<50 ppm

Inhibitor (against oxidation)

with anorganic

Iron content

< 1800 ppm
