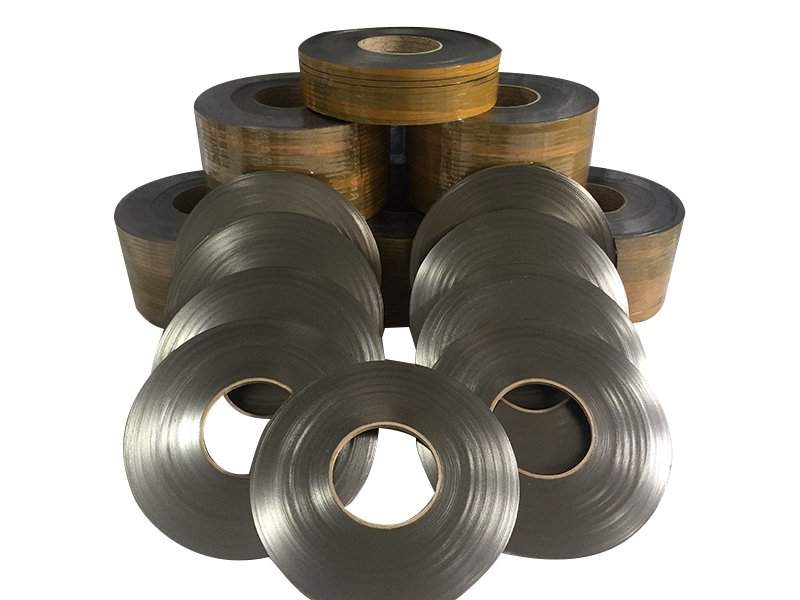

SUNPASS Graphite Filler for Spiral Wound Gasket is a gasket out of the category Spiral wound gaskets for use with steel flanges. Flexible graphite tape filler for spiral wound gasket has got exceptional tensile strength, compressibility as well as recovery, that will make it will be the best filler material for making spiral wound gaskets, comprofile gaskets, graphite packing rings, corrugated graphite tapes.
| Items | Data | ||||
| Static pressure | 130 bar | ||||
| Total Sulfur Content | 40 - 1000 ppm max. | ||||
| Parallel to Sheet Surface | 960 BTU-in/ft2.h.F (140 W/m.K) | ||||
| Working Temperature Range | -240°C to 510°C | ||||
| Non-Oxidizing Atmosphere | -240°C to 3000°C | ||||
| Thickness | 0.1-2.0 mm | ||||
Can resist high temperature, high pressure, and adapt to the use condition of ultra-low temperature or vacuum.
The sealing performance is stable and reliable at the station with frequent temperature and pressure fluctuation.
The installation is convenient, and the pre-tightening pressure of the gasket is low.
Simply you can wholesale Graphite Filler for Spiral Wound Gasket direct from manufacturers.
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Graphite Filler for Spiral Wound Gasket suppliers known by the world since 2000.
