METAL CORRUGATED GASKET

Description:

SUNPASS Metal Kamprofile Serrated Gasket are suitable for the most difficult applications such as superheated steam, high pressure hydrocarbon or chemical service. These gaskets can be find from conventional Electric Power Plants as well as in the Nuclear Power Plants, chemical and petrochemical industries.

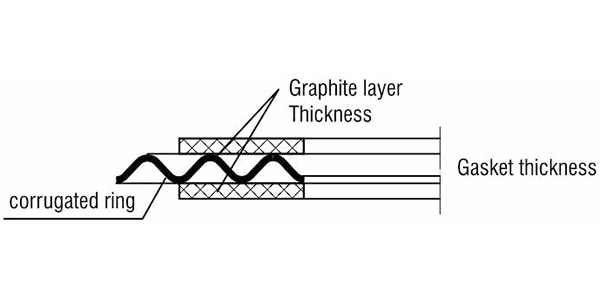

The solid core covers with machined grooves and soft material facing (graphite, PTFE, others),taking SS304L, SS316L, SS321 and other materials available.

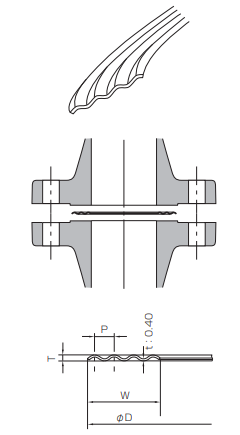

Detail Image

Product Details

Product	Materials	Surface Pressure(N/mm2)
		T=20℃		T=300℃
		min	max	min	max
MCG	Carbon Steel	120	600	130	390
	Stainless Steel/Graphite	15	180	20(1)	150(1)
	Stainless Steel/PTFE	15	180	20(1)	150(1)
	Aluminium/Mineral Fibre	30	80	_	_
	Copper/Mineral Fibre	35	110	45	90
	Carbon Steel/Mineral Fibre+PTFE	45	150	60	125
	Steel/Mineral Fibre	35	150	45	125
	Carbon Steel/Mineral Fibre	75	150	70	125
	Stainless Steel/Graphite	20	180	25	150
