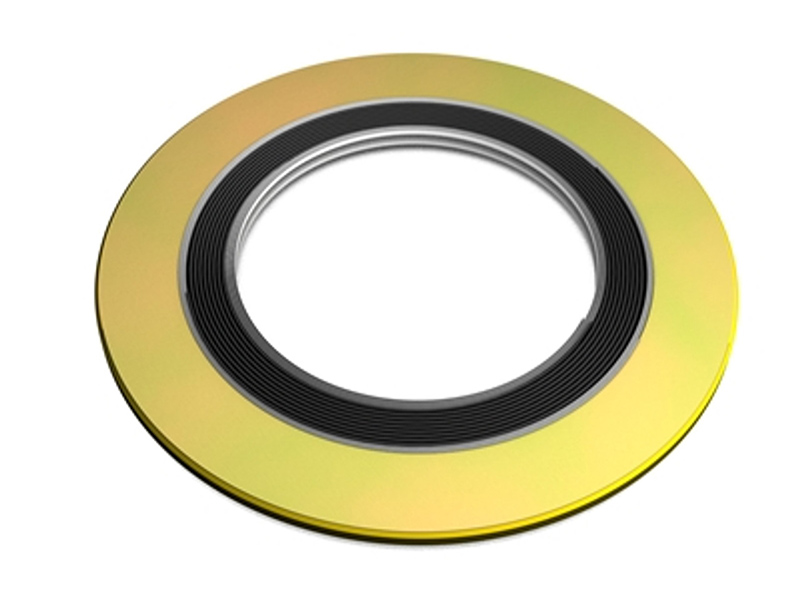

TOP SEALING Spiral Wound Gaskets are composed of a preformed thin metallic strip combined with a soft sealing composite material. These components are wound together under pressure to energize the sealing element, causing it to act like a spring when compressed between two flange faces. Depending on the specific application, the sealing element can be used stand-alone or in conjunction with inner and/or outer rings.
| Items | Data | ||||
| Materials Metal Strip | teel - 1.4301, 1.4401, 1.4541, 1.4571, Monel (NiCu30Fe) - 2.4360 | ||||
| Filling Material | Graphite 99,85% - operating temperature -200°C to +550°C , Graphite 98% - operating temperature -200°C to +400°C , PTFE - operating temperature -200°C to +250°C | ||||
| Material inner ring | Generally, the material corresponds to that of the metal strip | ||||
| Gasket thickness | 3,2mm - 4,5mm - 6,5mm - 7,2mm | ||||
| Temperature (C) | -200~750 | ||||
| Pressure (bar) | 100~300 | ||||
①Machine building, vessel, piping and apparatus construction
②Used in Refinery, Petrochemical, Chemical, Steam lines and Process Industries
Simply you can wholesale Spiral Wound Gasket with Inner Ring direct from manufacturers.
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Spiral Wound Gasket with Inner Ring suppliers known by the world since 2000.
