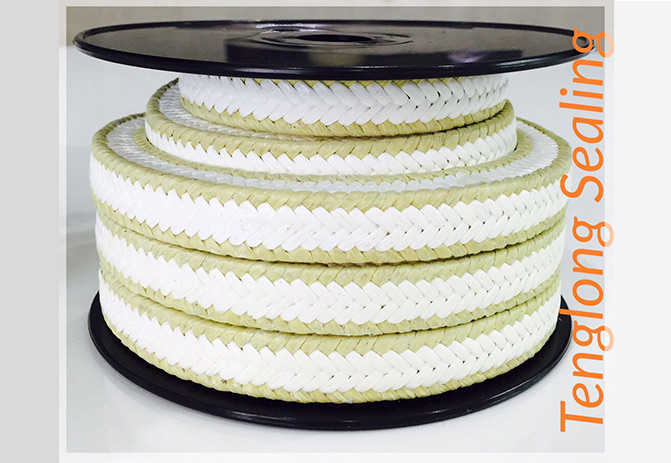

Ptfe and Aramid Fiber Corner Braided Gland Packing

Description:

TOP SEALING PTFE and Aramid Fiber Corner Braided Gland Packing STYLE 6500 PTFE is pure PTFE yarn braided packing incorporated with pure 100% Dupont's Kevlar yarn throughout the four corners. This structure enhances the lubricating ability of Aramid and reinforced the strength of the pure PTFE packing. Good silding properties and thermal conductivity.
Every fiber is impregnated with PTFE emulsion. This system of impregnation assures even distribution of the PTFE. The fibers are saturated and sealed with PTFE particles, protecting the fibers from chemical action. To assure good break-in characteristics, a special high temperature synthetic lubricant is added.

Ptfe and Aramid Fiber Corner Braided Gland Packing

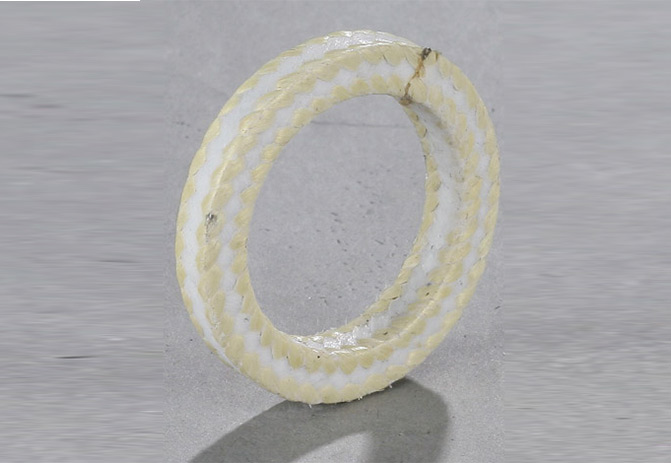

Detail Image

Product Details

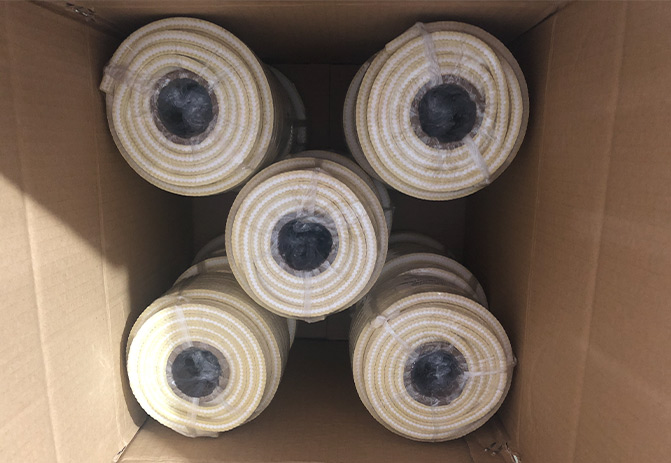

Regular:3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.

Other packages are available on request



Not suitable for :Concentrated acids and lye, alkali metals, fluorine and fluorine compounds at high temperature.

More Styles

Application Data
Advantages
Video
Comparison Vision



Pressure: bar

25

500

250

Speed: m/s

20

2

PH Range

2-12

Temp.℃

-100 to +260

Density: (g/cm³)

1.45-1.50

Size

1/4"-2"

6mm-50mm



1.PTFE and Aramid Fiber Corner Braided Gland Packing STYLE 6500PTFE can be used in piston pumps, valves, pulp, paper, waste water treatment, petrochemical, and other general industrial applications.

2.PTFE and Aramid Fiber Corner Braided Gland Packing STYLE 6500PTFE is suitable for oils, solvents, diluted acids and alkalis. Abrasive media like sand, slurry, sewage, brine and etc.

Simply you can wholesale Ptfe and Aramid Fiber Corner Braided Gland Packing direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Ptfe and Aramid Fiber Corner Braided Gland Packing suppliers known by the world since 2000.
