Carbonized Fiber Impregnated With PTFE & Coated Graphite Packing

Description:

SUNPASS STYLE 5600WG braided from high carbon continuous yarns after softening, impregnated with proprietary lubricants ,which fill woids, act as a break-in lubricant, and block leakage.
STYLE 5600WG is used for pumps or valves in high pressure and high temperature.

Carbonized Fiber Impregnated With PTFE & Coated Graphite Packing

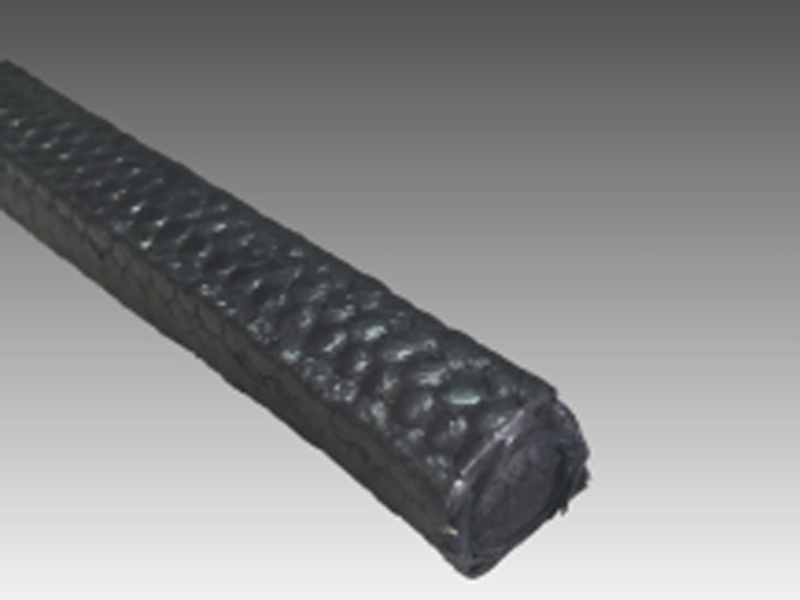

Detail Image

Product Details

Items
Pressure: bar 35 35 170
Shaft Speed: m/s 20
PH Range 0-14
Temp.℃ Atmosphere to 455; Steam to 650
Density: (g/cm³) 1.4
Size 1/8"-2"
3mm-50mm

More Styles

Application Data
Advantages
Video

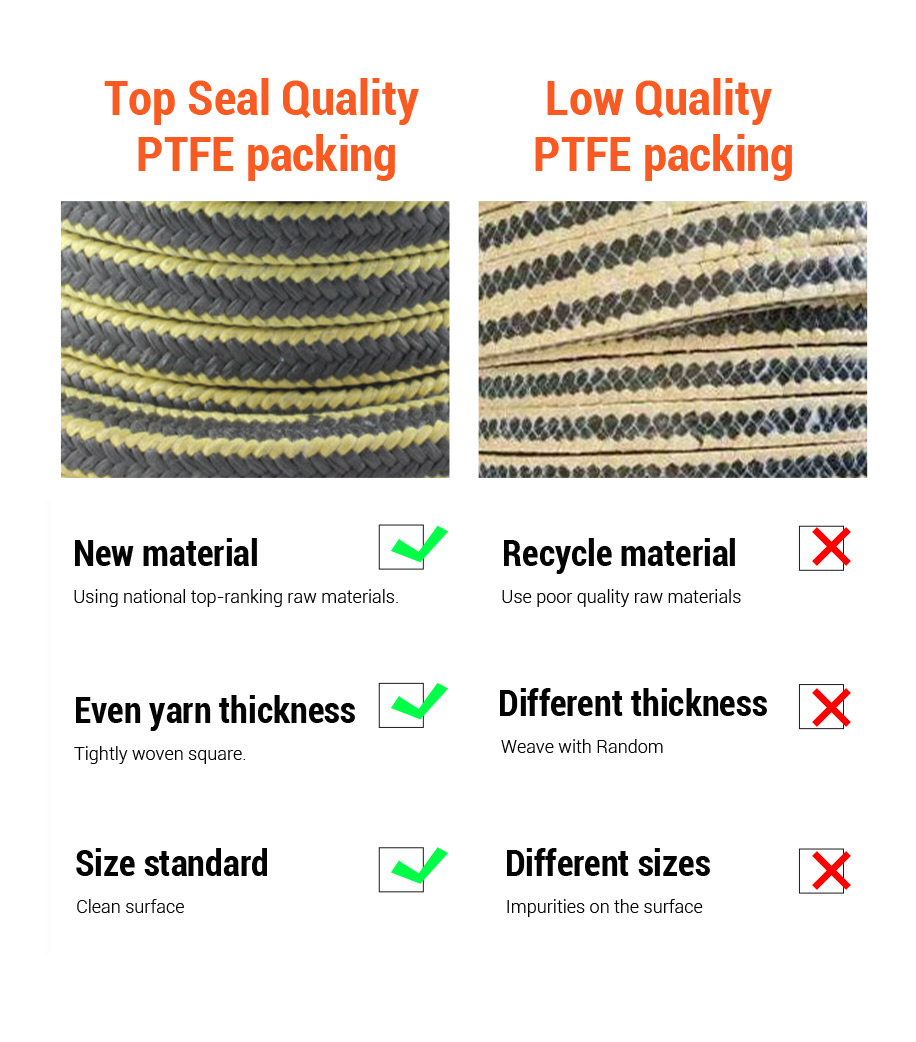

Comparison Vision
1. It covers wide range of application, relatively economical .
2. It is suitable for centrifugal pump, mixer, agitator, stern tube, etc.
3. It is suitable for early all media, cold and hot water, steam, chemicals, hot gases, alcohol, solvents, heat transfer agents, etc.



Simply you can wholesale Carbonized Fiber Impregnated With PTFE & Coated Graphite Packing direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Carbonized Fiber Impregnated With PTFE & Coated Graphite Packing suppliers known by the world since 2000.
