Ceramic Fiber Yarn

Description:

Ceramic fiber yarn is manufactured from high quality alumina-silica ceramic fiber and has been mechanically twisted to give it tensile strength. The yarn is available as E-glass or stainless steel wire reinforced yarn from 425 tex to 2500 tex in single, two or three plies.
Ceramic fiber yarn can be woven, plaited into numerous forms of products which are strong, chemically stable and exhibit superior thermal properties, ideal for most industrial high temperature applications. Product made of ceramic fiber yarn resist attack from most corrosive agents, except hydrofluoric, phosphoric acids and concentrated alkalis.
STYLE 4300: Ceramic Fiber Yarn With Fiberglass Filament insert
STYLE 4300-INC: Ceramic Fiber Yarn With Stainless Steel Wire insert

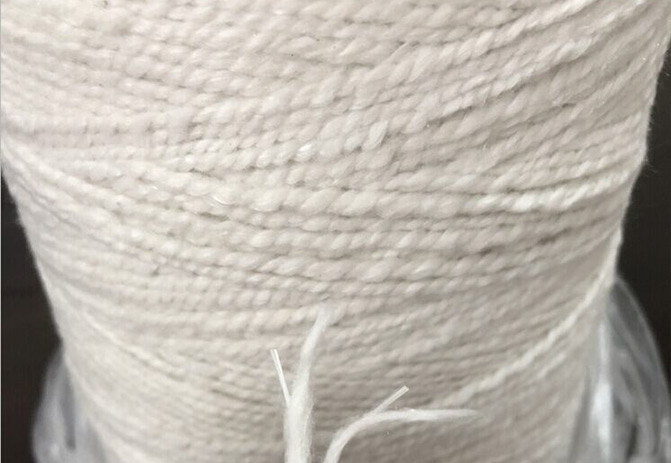

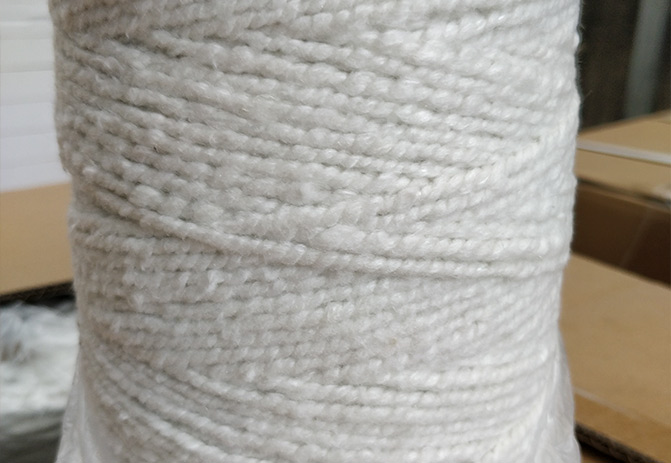

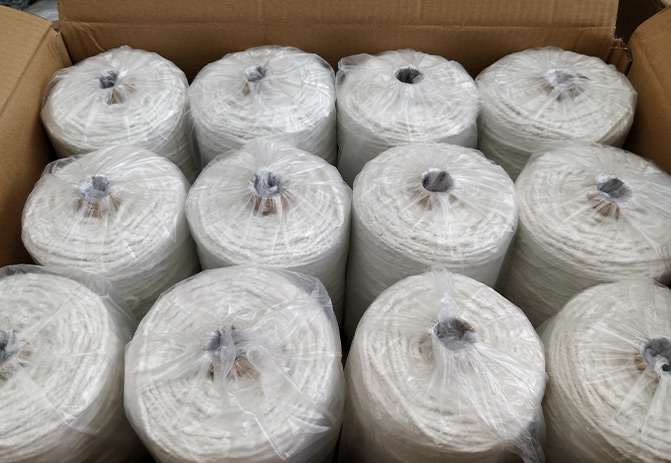

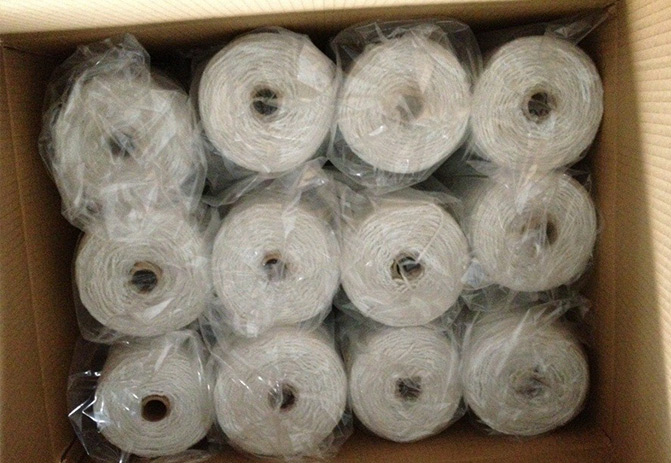

Ceramic Fiber Yarn

Detail Image

Product Details

Description\Item Ceramic Fiber Yarn With Fiber Glass Reinforced Ceramic Fiber Yarn With Metal Reinforced
TENGLONG style 4000Y 4000YS
Reinforced Material Glass Filament Stainless Steel
Classification
Temperature
English 2300℉ 2300℉
Metric 1260℃ 1260℃
Maximum Operating Temperature English 932-1112℉ 1832℉
Metric 500-600℃ 1000℃
High-temperature Loss on Lgnition 15-25% 10-20%
Chemical Stability Good Good
Electrical Insualtion Property Better Good
Strength Good Better



More Styles

Application Data
Advantages
Video
Comparison Vision

High temperature gaskets
Making cloth, tape, rope, etc
Sewing thread for high temperature textiles

Description\Style No. 4000Y 4000YS
Reinforced Material Glass Filament Stainless Steel
Colour White
Fiber diameter 2-4um
Fiber Length 100-200mm
Thinckess 425tex to 2500tex in single, two or three plies
Density  English 18.75-43.75ib/ft3
Metric 300-700kg/m3
Chemical
Composition
Al2O3+SiO2 ≥97%
Al2O3 ≥48%
Fe2O3 ≤1.1%
Water Content ≤1
Organics Content ≤15
Thermal Conductivity 300℃/572℉ 0.12~0.13w/m.k
600℃/1112℉ 0.13~0.16w/m.k
1000℃/1832℉ 0.17~0.20w/m.k
Heating Liner Shringkage ≤3.5(1000℃×3h)
Acid-resistance &
Alkali-Resistance
10% NaOH After 72 hours 50%
10% N2SO4 After 72 hours 50%

Simply you can wholesale Ceramic Fiber Yarn direct from manufacturers.
