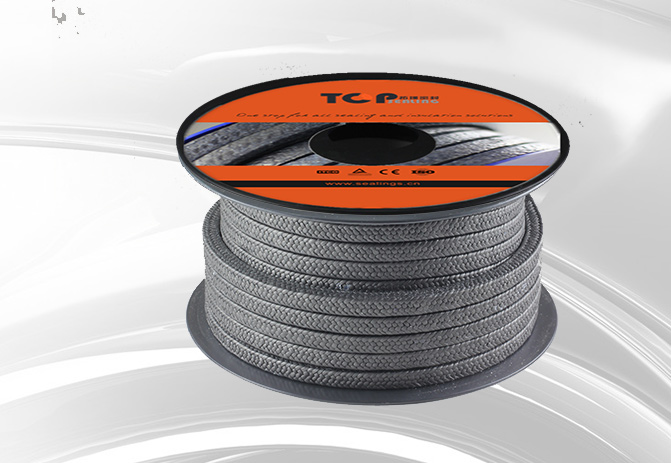

Graphite Coated and PTFE Impregnated Graphite Gland Packing

Description:

TOP SEALING Graphite PTFE Gland Packing STYLE 6200GFO was made from graphite-PTFE com pound without lubricant very good thermal conductivity. High flexibility and volumetric stability, no embrittlement or ageing. Long life with good operating efficiency. Gentle treatment of shafts.
Graphite PTFE Gland Packing STYLE 6200 has lubricant , which is the only difference with STYLE 6200GFO.
Thermal conductivity of STYLE 6200GFO is better than STYLE 6200's

Graphite Coated and PTFE Impregnated Graphite Gland Packing

Detail Image

Product Details

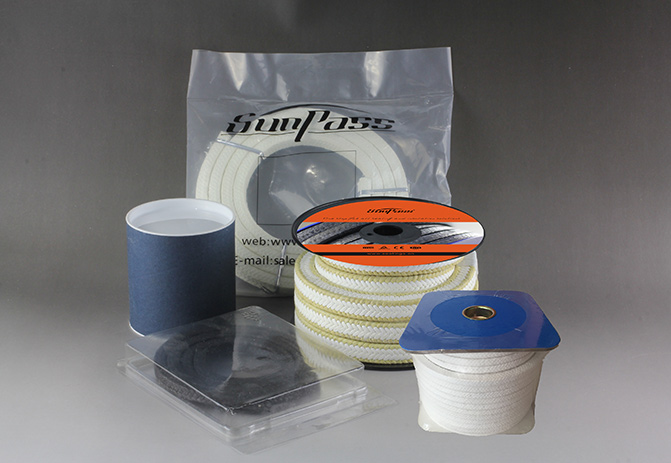

Regular:3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.

Other packages are available on request

Not suitable for:

Highly oxidizing media like oleum, fumin nitric acid, aqua region, gaseous fluorine , lacquer and paints.

More Styles

Application Data

Advantages

Video

Comparison Vision


Pressure: bar	25 for 6200;50 for 6200GFO	250	150
Speed: m/s	25	2	—
PH Range	0-14
Temp ℃	-200°C to 288°C
Density: (g/cm³)	Abt. 1.50-1.55 for 6200GFO; 1.65-1.75 for 6200
Size	1/8"-2"
Size	3mm-50mm

1.Ptfe-graphite packing(similiar GFO) STYLE 6200GFO/STYLE 6200 can be used in pumps, agitators mixers and kneader centrifugal pumps , agitators,involving high peripheral speeds and temperatures, where pure PTFE packing fail.

2.Ptfe-graphite packing(similiar GFO) STYLE 6200GFO/STYLE 6200 is suitable for liquid and gaseous, acids, lye, solvents, adhesives, abrasive and crystalline media like sewage, slurries, salt, etc.

Simply you can wholesale Graphite Coated and PTFE Impregnated Graphite Gland Packing direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Graphite Coated and PTFE Impregnated Graphite Gland Packing suppliers known by the world since 2000.
