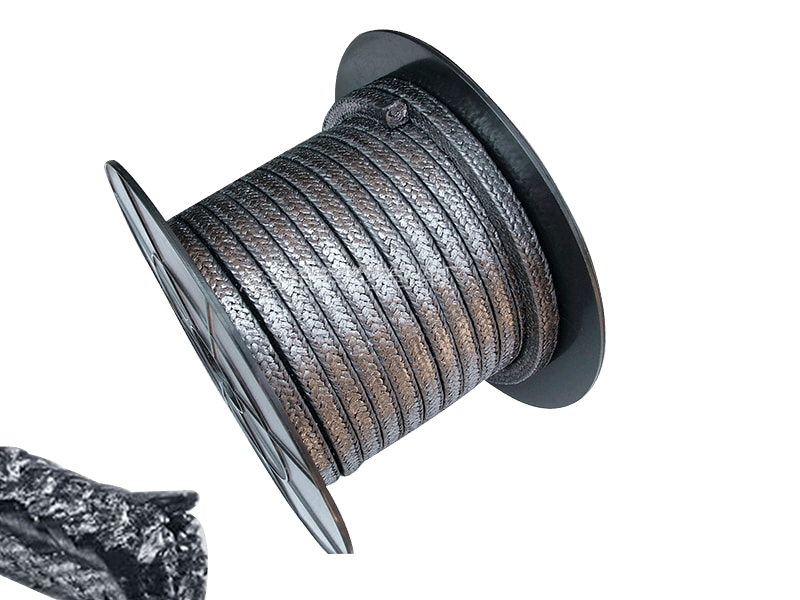

TOP SEALING STYLE5600 is is lattice braided as is the carbon achieving maximum strength. Extrusion is a thing of the past due to the binding effect of the lattice braided carbon zebra.iT is a high strength packing, resists extrusions, It is ideally suited to the high end valve packing areas.
STYLE 5600 can be used in many demanding applications, both dynamic and static.
Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.
Size：3，4，5，6，1/4"，8，3/8"，10，7/16"，12，1/2"，14，16，18，19，20，22，25，30，35，40，45，50
Regular:3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.
Other packages are available on request
|
|
|
|
|
|
Pressure: bar |
30 |
— |
500 |
|
Speed: m/s |
2 |
— |
2 |
|
PH Range |
0-14 |
||
|
Temp.℃ |
-200 to + 550 |
||
|
Density: (g/cm³) |
1.1 |
||
|
Size |
1/8"-2" |
||
|
3mm-50mm |
|||
Simply you can wholesale Specification of graphite fiber and carbon fiber corner braided gland packing from tengl direct from manufacturers.
1. Extrusion resistant
2. High-temperature/high-pressure
3.Elastic
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Specification of graphite fiber and carbon fiber corner braided gland packing from tengl suppliers known by the world since 2000.
