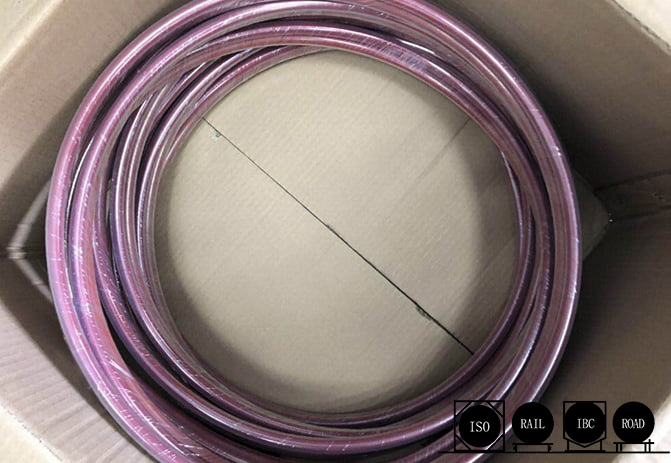

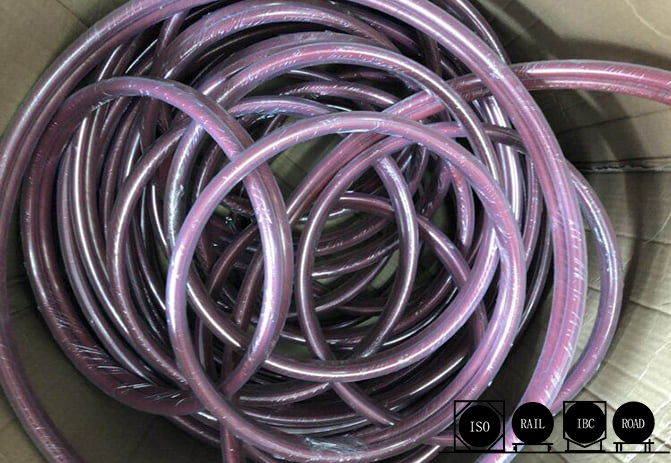

SUNPASS FEP Encapsulated Seal FO00010 is consisted of a seamless and uniform Teflon® FEP encapsulation which completely encloses a core material of either silicone or Viton® elastomers. The combination of these components creates a seal that is virtually chemically inert and compression set resistant for use in harsh sealing environments.
Encapsulated Seal VS Solid PTFE
A standard elastomeric seal has inadequate chemical resistance for a specific application, and A solid PTFE seal does not offer sufficient elasticity for reliable, long-term fluid sealing.
These are held in a variety of general and high performance elastomers to suit the vast majority of industrial and specialised oil & gas sector applications.
Service capabilities
Continuous Service temperature: -60℃ to +200℃
| SUNPASS CODE | TYPE | SIZE | |||
| FO00009 | DN500 | (DIA. 16MM) SECTION*486MM INNER DIA | |||
| FO00010 | DN500 | (14MM*14MM) SECTION*486MM INNER DIA | |||
| FO00011 | DN300 | (14MM*14MM) SECTION*294MM INNER DIA | |||
Many dimensions are availiable as well as special seals to suit specific manlids
Simply you can wholesale FEP Encapsulated Seal direct from manufacturers.
1.High Chemical Resistance
2.Outperforms solid FTFE O-Rings
3.Wide Temperature Range
4.Non Stick Surface
5.Low Coefficient of Friction
6.Sanitary
7.Unlimited Sizes
8.Low Compression Set
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and FEP Encapsulated Seal suppliers known by the world since 2000.
