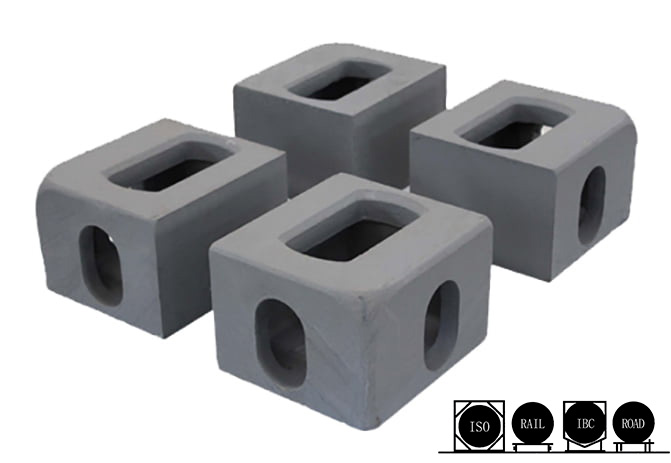

Corner Casting

Description:

SUNPASS Corner Casting SPCC are the Standard ISO type container corner castings. Corner castings are the structural element of a shipping container allowing it to be connected to other containers both horizontally and vertically as well as being connected to transport modes including ship, rail and road. When connecting containers together the corner casting provides the structural connection point required for the many different types of shipping container connectors such as shipping container double ended twist locks, shipping container weldable twist locks and shipping container bridge clamps.

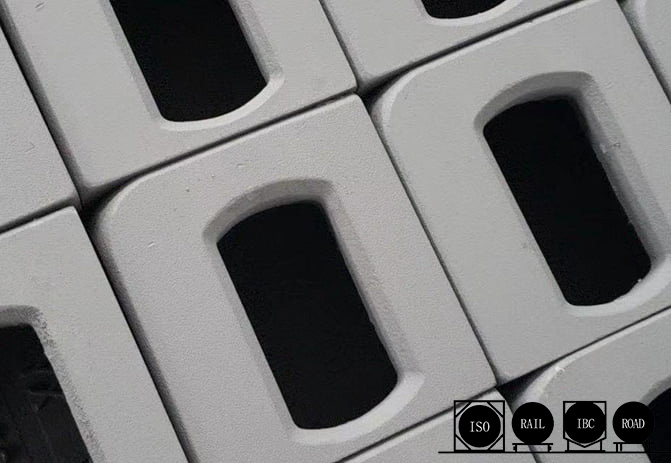

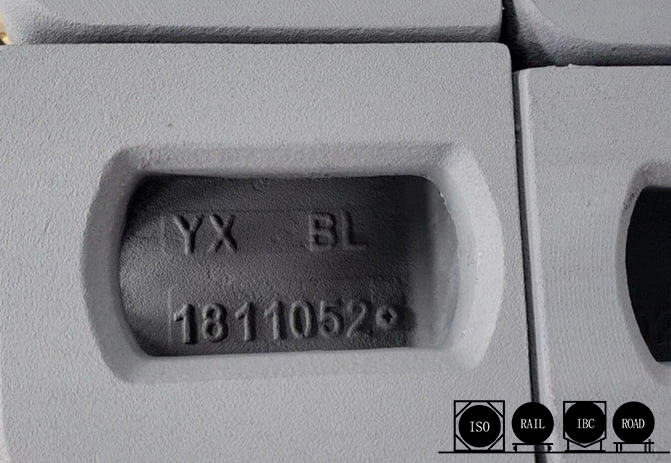

Detail Image

Product Details

Feather:
1. Made in accordance with ISO 1161/BS 3951 and Lloyds Register Guidance Note A
2. Material: SCW480. Other material is available.
3. A standard 96" wide ISO container uses 8 corner castings consisting of:
Top Left - 2 pcs

Top Right - 2 pcs

Bottom Left - 2 pcs

Bottom Right - 2 pcs

More Styles

Application Data

Advantages

Video

Comparison Vision

Operating Mode	Bearing Condition	Designed Load(kN)
Stacked	The load of the top Angle is biased laterally by 25.4mm and longitudinally by 38mm	848
	Bottom corner piece (placed on horizontal support)	954
	The lateral offset of the bottom corner load is 25.4mm, and the longitudinal offset is 38mm (equivalent to the fifth layer container to the sixth layer container).	848

Simply you can wholesale Corner Casting direct from manufacturers.
