Burst Disc

Description:

SUNPASS Burst Disc BD025484 consists of bursting disc, clamper and other parts. It has been developed for the protection of intermodal tank containers from overpressure during storage and transportation of liquefied gases. The rupture disk can be used to isolate the relief valve and prevents leakage through the valve.

Burst Disc

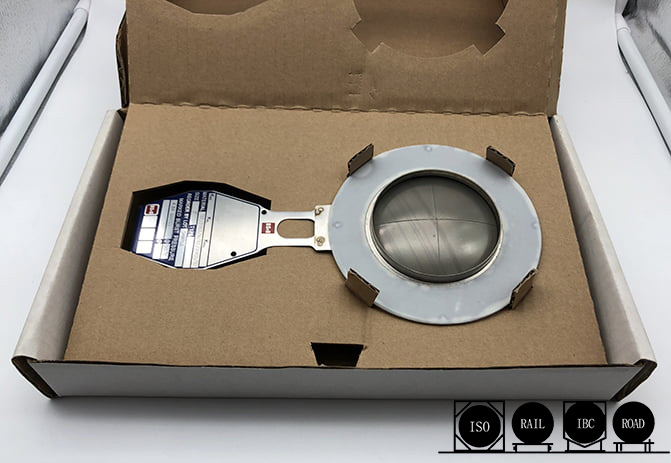

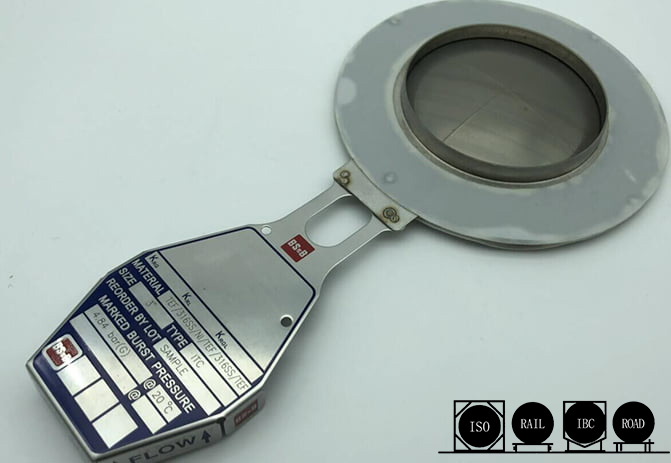

Detail Image

Product Details

Code   Size Burst Pressure Material Temperature Rate
        In         Mm Barg Pslg °F °C
BD025484 Liquid Tank Container 2.5 65 4.84 70.2 Nickel 20 68
BD030484 Liquid Tank Container 3 80 4.84 70.2 Nickel 20 68
BD033025 Gas Tank Container 3 80 30.25 438.6 SS 316 55 131
BD033795 Gas Tank Container 3 80 37.95 550.3 SS 316 55 131
BD100600 Hydrogen Peroxide Gas Tank Container 10 250 6.00  87 SS 316 20 68
Other
Burst tolerance ±5% of stamped burst pressure
Consult SUNPASS for other materials and pressure ratings

More Styles

Application Data
Advantages
Video
Comparison Vision

(1)A place where the disc of a safety valve is easy to stick or block the safety valve.
(2)A place of pressure relief in time when the pressure in the container rises suddenly.
(3)Places requiring full discharge or unimpeded discharge
(4)Other places not suitable for safety valves but for bursting discs

Simply you can wholesale Burst Disc direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Burst Disc suppliers known by the world since 2000.
