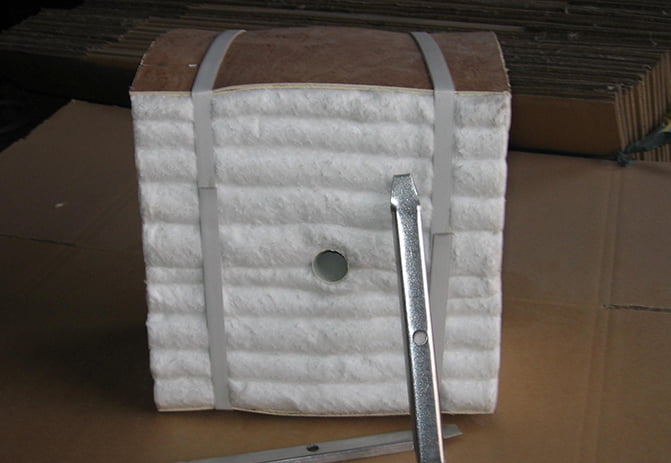

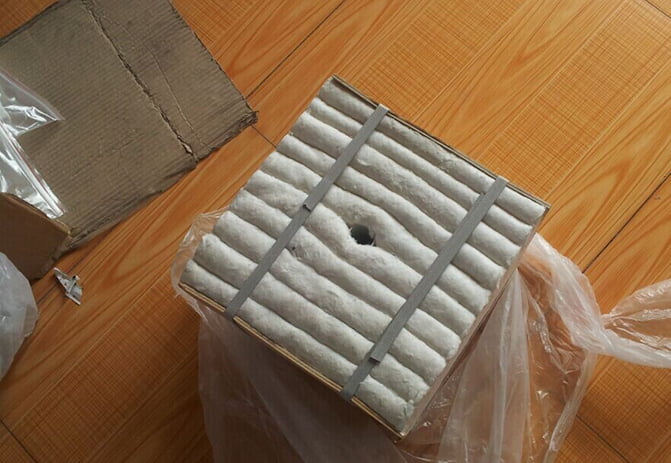

TOP SEALING CERAMIC FIBER MODULE are designed and engineered to apply on many types of kilns and heat process equipment. Each modules is a continues folded inorganic spun blanket under compression.
It’s prevent heat loss, increasing the furnace productivity and reducing maintenance costs. Installation is quickly and easily completed by contractors or plant personnel who have received basic training.
Density 220kg/m3 300*300*250mm High Temperature Ceramic Fiber Heating Module for Machinery
Ceramic Fiber Module Description:
1.Mainly serve as the ceramic fiber lining for industrial furnaces, heating equipment and high- temperature pipelines.
2. Metallurgy Industry: heating furnaces, heat treatment furnaces and ladle insulated cover
3. Mechanism industry: thermal insulation material for electric power boilers, gas turbine engine and nuclear power plant
4. Petrochemical industry: the lining of high-temperature reaction equipment and heating equipment in chemical fields, like converting furnaces, constant/reduced pressure furnaces, cracking furnaces, flue lining.
5. Ceramics and electro ceramics: roller hearth furnaces, tunnel furnaces , shuttle furnaces and other kinds of furnaces.
Simply you can wholesale CERAMIC FIBER MODULE direct from manufacturers.
| Item | Standard | High Pure | High Alumina | Zirconium | |
| Classification Temperature | 1260C | 1260 | 1360 | 1430 | |
| Work Temperature | 1000C | 1100C | 1200C | 1350C | |
| Density(kg/m³) | 190-240 | 190-240 | 190-240 | 190-240 | |
| Product Dimension(MM) | 600X300X150~300;300X300X150~300 | ||||
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and CERAMIC FIBER MODULE suppliers known by the world since 2000.
