Rubber Core Ceramic Fiber Rope Manufacturers

Home / Products / Thermal Insulations / Ceramic Fiber Thermal Insulation / Rubber Core Ceramic Fiber Rope

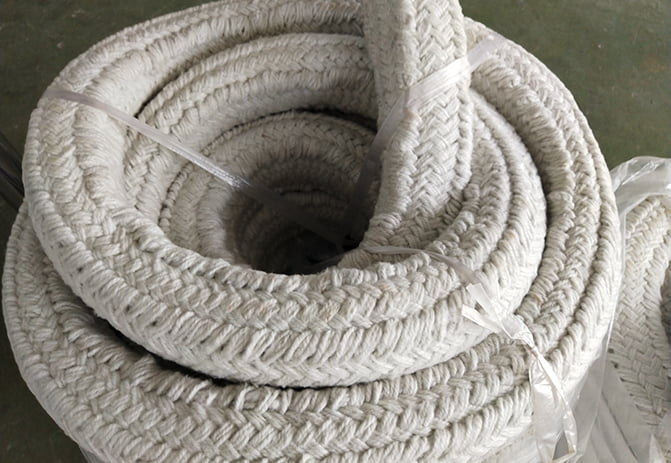

Rubber Core Ceramic Fiber Rope

Description:

TOP SEALING RUBBER CORE CERAMIC FIBER ROPE is manufactured from superior quality ceramic fiber yarn, braided cover on cover to form a solid packing. This product is suitable for caulking and general thermal insulation application, with properties of low thermal conductivity. These products have been widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, exhaust systems, shipyards, refineries, power plants and chemical plants.
The Ceramic fiber rope contains approximately 20% organic binders to facilitate the carding process. The binders burn at low temperatures, but without any effect on the special ceramic fibres. On request, Ceramic fiber rope can be impregnated with graphite to increase lubricating power.

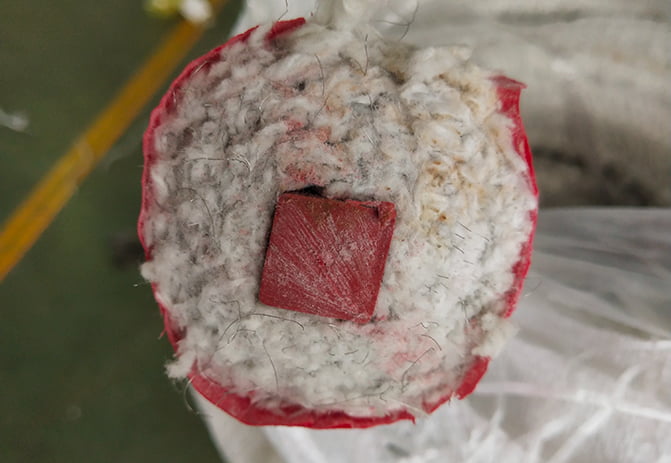

Rubber Core Ceramic Fiber Rope

Detail Image

Product Details

Description\Item Ceramic  Fiber Rope With Fiber Glass Reinforced Ceramic Fiber Rope With Metal Reinforced
TENGLONG style 4100R-FG,4100S-FG,4000T 4100R-INC,4100S-INC,4000T-INC
Reinforced Material Glass Filament Stainless Steel
Classification
Temperature
English 2300℉ 2300℉
Metric 1260℃ 1260℃
Maximum Operating Temperature English 1562℉ 1922℉
Metric 850℃ 1050℃
Alkali Content Good Good
Electrical Insulation Property Better Good
Strength Good Better

More Styles

Application Data
Advantages
Video
Comparison Vision
Description\Item Ceramic Fiber Round Rope Ceramic Fiber Square Rope Ceramic Fiber Twisted Rope
TENGLONG Style 4100R-FG 4100R-INC 4100S-FG 4100S-INC 4000T 4000T-INC
Construction Round Braid Square Braid  Twisted 3-ply
Density  English 50lb/ft3 75lb/ft3 25lb/ft3
Metric 800 kg/m3 1200 kg/m3 400 kg/m3
Dimensions  English Ø 1/4” - 4”  Ø1/4” - 2” Ø 1/4” - 2”
Metric 6mm-100mm 6mm-60mm 6mm-60mm
Colour White
Chemical Composition Al2O3 + SiO2  97%
Al2O3 47%
Fe2O3 1%
Fiber Diameter 2-4 microns
Fiber Length 100-250 mm
Shrinkage  <3.5% 982℃ (1800 ºF )
pH Range  2-12
Package 25M, 30M, 5KG per roll or as customers requested, 20kg/CTN or 50kgs/plastic woven bag

Thermal insulation and sealing for stove, burner, chimney door sealing --Seal for heat exchanger, kiln car

Simply you can wholesale Rubber Core Ceramic Fiber Rope direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Rubber Core Ceramic Fiber Rope suppliers known by the world since 2000.
