TOP SEALING VERMICULITED CERAMIC CLOTH Compared to uncoated ceramic fiber, vermiculite coated ceramic fiber fabric cloth has little irritation of skin and provides increased resistance to high temperature, flame, and abrasion. In addition, the vermiculite film helps to seal against gases and liquids. Vermiculite coated ceramic cloth is completely non-flammable.
Features:
· Non-Flammable
· Good thermal stability
· Excellent resistor to chemicals
· High percentage of room temperature properties
Size:
Thickness: 1.6MM-6MM 3mm width: 1000mm Length 30M per roll
Width: 200MM-1000MM 2.5mm width: 1000mm Length 30M per roll

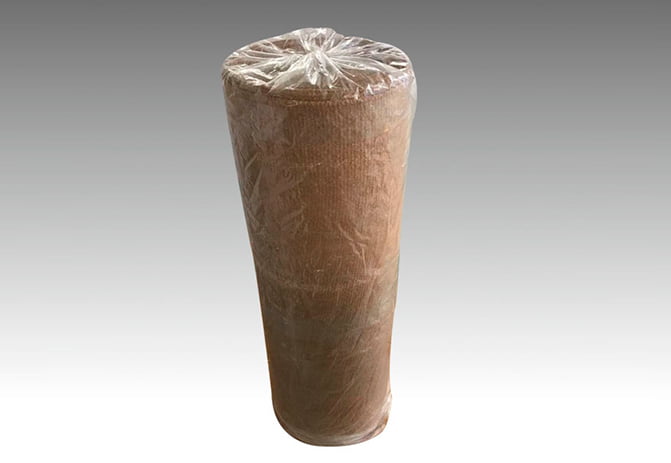

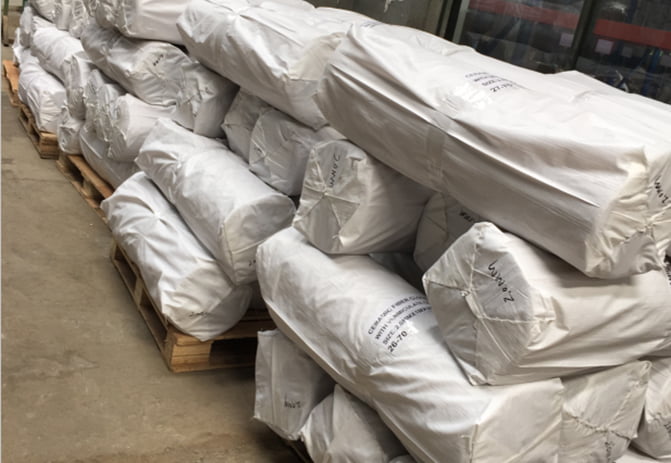

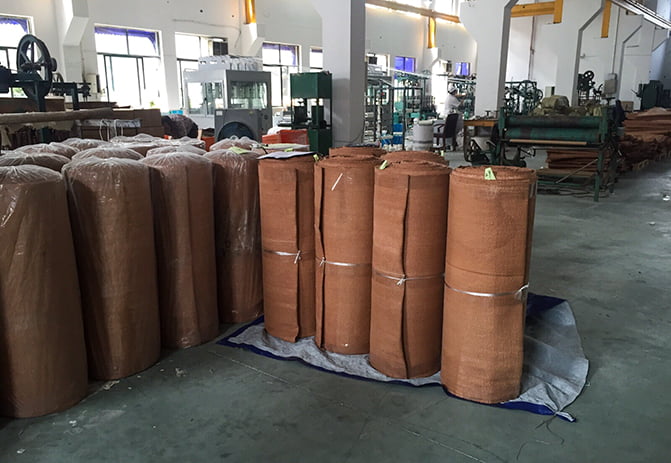

Package: 30M per roll with plastic woven bag
We also can made the finished fire proof blanket with holes to customers, such as 1MX2M per sheet.
| Property | Description | Value |
| Chemical Composite |
SiO2 | 38-46 |
| AL2O3 | 10-16 | |
| MgO | 16-35 | |
| CaO | 1-5 | |
| K2O | 1-6 | |
| Fe2O3 | 6-13 | |
| H2O | 8-16 | |
| Color | Gold-Brown | |
| Free Moisture | Maximum | 0.50% |
| pH | - | 7.0-9.5 |
| Specific Gravity | 2.5 | - |
| Fusion Point | English | 2200-2400℉ |
| Mteric | 1200-1315℃ |
| Property | Description | Value | |
| Ceramic Fiber Cloth With Fiber Glass Reinforced |
Ceramic Fiber Cloth With Metal Reinforced |
||
| Working Temperature |
Max Continuous Point | 500-600℃ (932-1112℉) | 1000℃ (1832℉) |
| Melting Point | 1450℃ (788℉) | 1800℃ (982℉) | |
| Density | English | ||
| Metric | |||
| Fiber Diameter | - | 2-5um | |
| Thermal Conductivity | - | 0.12-0.2w/(m.k) | |
| Loss on ignition | - | <18% | |
| Moisture Content | - | ≤1 | |
| Organic Content | - | ≤15 | |
| Coating | Vermiculite | - | |
| Color | Tan | - | |
| Thickness | English | 0.06-0.24inch | |
| Metric | 1.5-6mm | ||
| Width | English | 0.8-40inch | |
| Metric | 20-1000mm | ||
Used in welding blankets, stress relieving, removable insulation covers, fire blankets, fire curtains, expansion joints, oven door seals, flue ducts, flue liner protection, Cable protection, Pipe wrap, High temperature gaskets.
Simply you can wholesale VERMICULITED CERAMIC CLOTH direct from manufacturers.
Compared to uncoated Ceramic fiber, vermiculite coated Ceramic fiber fabric cloth has little irritation of skin and provides increased resistance to high temperature, flame, and abrasion. In addition, the vermiculite film helps to seal against gases and liquids. Vermiculite Coated Ceramic Cloth is completely non-flammable.

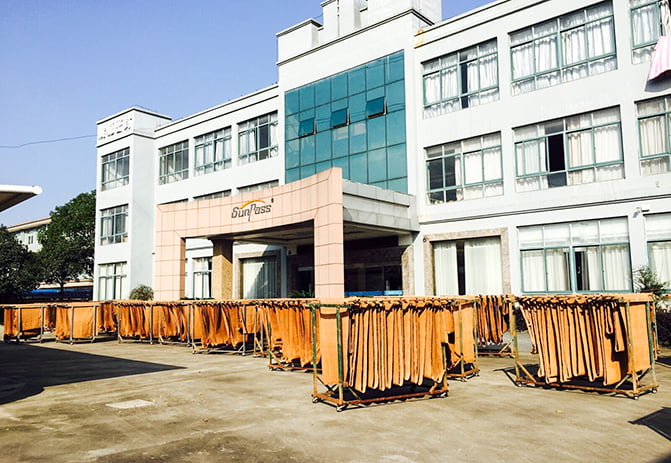

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and VERMICULITED CERAMIC CLOTH suppliers known by the world since 2000.
