ALUMINUM FOIL COATED FIBERGLASS TAPE

Description:

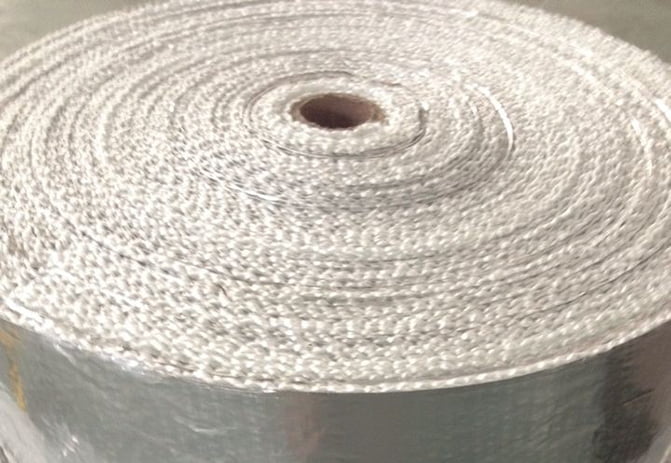

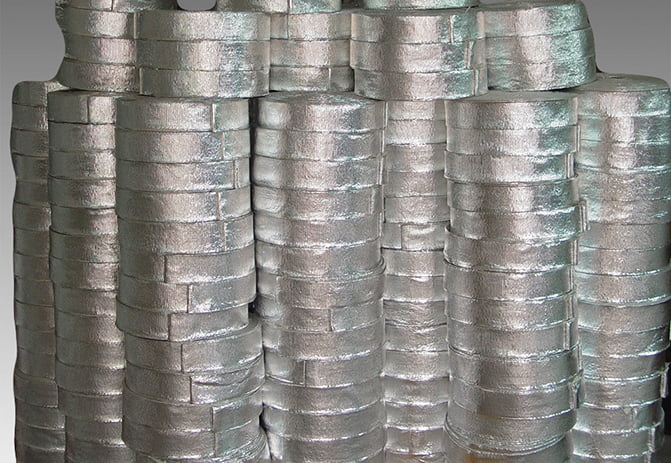

TOP SEALING ALUMINUM FOIL COATED FIBERGLASS TAPE reflect up to 95% of heat, with no organic flame contribution and provides a tough, impermeable, heat reflective coating that allows the fiberglass fabric to be used in a variety of demanding applications. The product is specifically designed for fabric used for pipe wrapping and engine exhaust pipes.

Detail Image

Product Details

Description\ Item		E-Glass	C-Glass
Chemical Composition	SiO2	58-63%	64-68%
	CaO	21-23%	11-15%
	Al2O3	10-13%	3-5%
	MgO	2-4%	4-6%
	B2O3	-	0-6%
Chemical Resistance-14mm fiber; % weight loss after 1 hr boil in	H2O	0.2	0.13
	1.04 NH2SO4	0	0.1
	0.1 NaOH	0.2-0.6	2.28
Temperature	Softening Point	890℃/1635℉	750℃/1380℉
	Coefficient of thermal expansion-in/in/ °F x 10-7	2℃/29℉	5℃/40℉
	Specific Gravity (bare fiber)	2.63	2.49
Pristine Tensile Strength, psi		510,000	400,000

More Styles

Application Data

Advantages

Video

Comparison Vision

Description\ Item		Aluminum Foil Coated Fiberglass Tape
		English	Metric
Coating		Aluminum Foil
Coating Thickness		0.28mil/0.7mil/ 0.98mil	7um/18um/ 25um
Temperature Resistance	Continuous Operation	650°F	340°C
	Short Duration Exposure	1200°F	650°C
	Melting Point	1220°F	660°C
Thickness		0.03-0.24inch	0.8mm to 6mm
Width		0.40-8inch	10mm to 200mm
Color		Silvery

Simply you can wholesale ALUMINUM FOIL COATED FIBERGLASS TAPE direct from manufacturers.
