FIBER GLASS GRAPHITE TAPE

Description:

TOP SEALING FIBER GLASS GRAPHITE TAPE comes with superior graphite coating and provides vital assistance in improving abrasion resistance as well as performance of the tapes in high temperatures at 1000°F /537°C continuous, 1112°F /600°C for long time as well as in higher temperatures for short periods.
This makes these tapes suitable for use in hot, dry conditions as well as in aggressive working environment especially where flexing can result in damages to untreated fabrics.
These high temperature tapes provide protection of industrial wires, cables, hoses, tube and pipe and also provide thermal insulation and personnel protection. Also used as a gasket or seal.

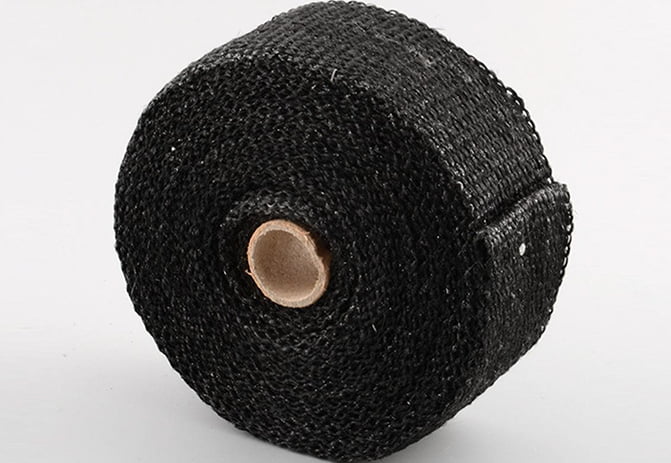

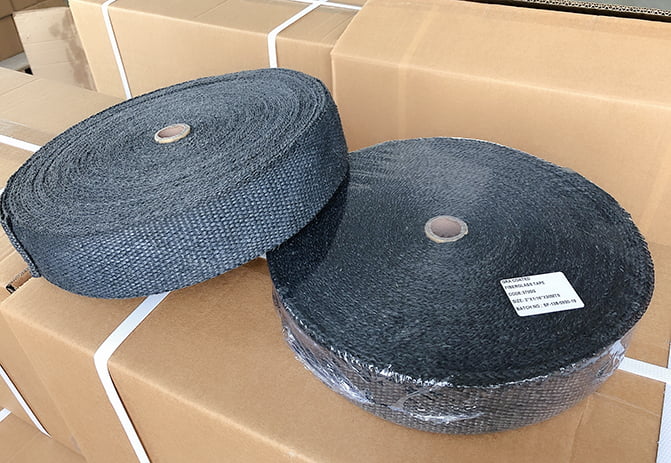

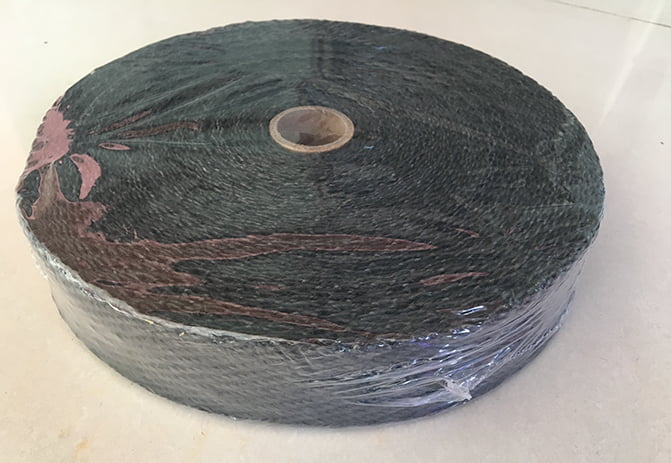

Detail Image

Product Details

Description\ Item		E-Glass	C-Glass
Chemical Composition	SiO2	58-63%	64-68%
	CaO	21-23%	11-15%
	Al2O3	10-13%	3-5%
	MgO	2-4%	4-6%
	B2O3	-	0-6%
Chemical Resistance-14mm fiber; % weight loss after 1 hr boil in	H2O	0.2	0.13
	1.04 NH2SO4	0	0.1
	0.1 NaOH	0.2-0.6	2.28
Temperature	Softening Point	892℃/1635℉	748℃/1380℉
	Coefficient of thermal expansion-in/in/ °F x 10-7	2℃/29℉	5℃/40℉
	Specific Gravity (bare fiber)	2.63	2.49
Pristine Tensile Strength, psi		510,000	400,000

More Styles

Application Data

Advantages

Video

Comparison Vision

Description\Style No.		3700G
Coating		Graphite
Colour		Black
Weave		Plain
Thickness	English	0.03-0.4inch
	Metric	0.8mm to 10mm
Width	English	0.60-8inch
	Metric	15-200mm

Simply you can wholesale FIBER GLASS GRAPHITE TAPE direct from manufacturers.

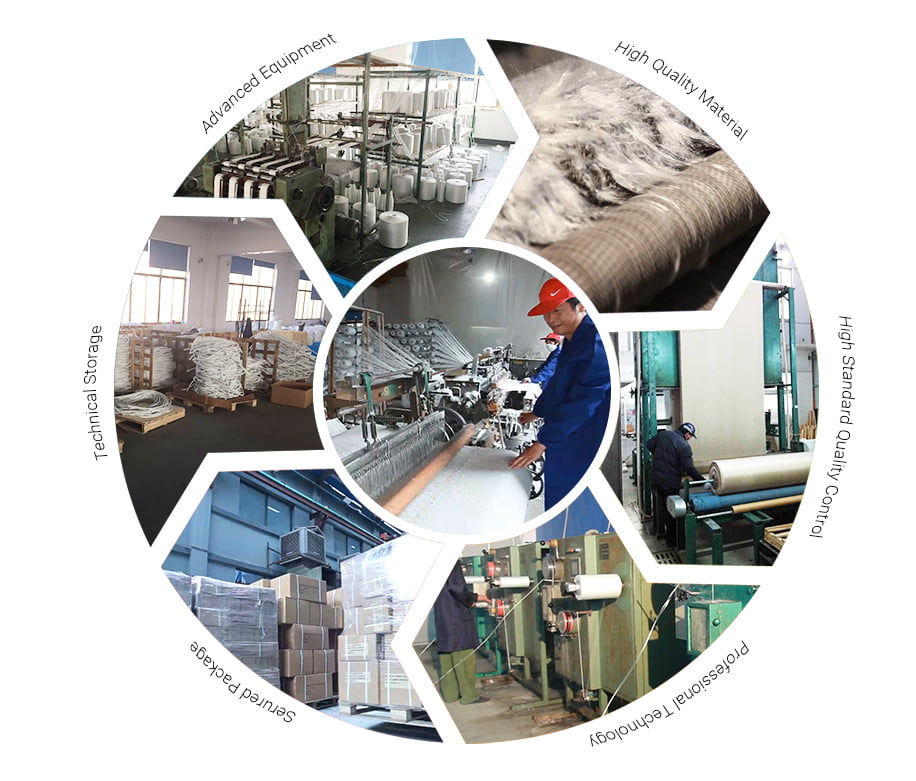

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and FIBER GLASS GRAPHITE TAPE suppliers known by the world since 2000.
