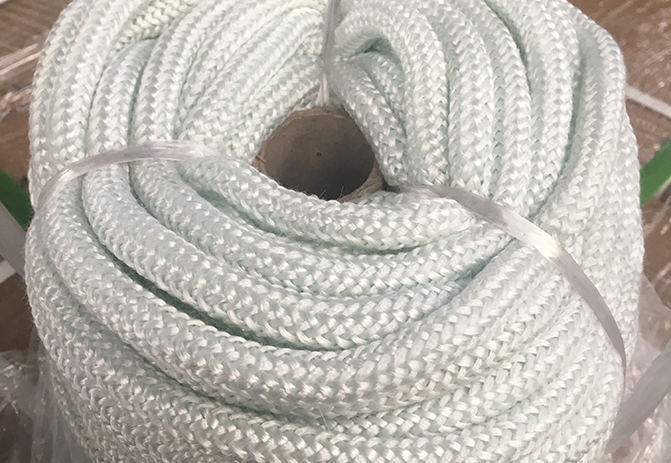

FIBER GLASS KNITTED ROPE

Description:

1. TOP SEALING TEXRIZED FIBERGLASS ROPE is made of continuous filament texturized C or E glass yarns and is extremely strong, resilient, and flexible. 2.Texturized fiberglass rope are intended for high-temperature applications up to 1000ºF.
3.Texturized fiberglass rope consists of a fiberglass yarn core with a fiberglass braided jacket to form an exact diameter for controlled compression seals. Fiberglass rope is manufactured in both dense and soft.
4.Texturized fiberglass rope can be round or square depending on the customer's need.

Detail Image

Product Details

Description\ Item		E-Glass	C-Glass
Chemical Composition	SiO2	52-56%	64-68%
	CaO	16-25%	11-15%
	Al2O3	12-16%	3-5%
	MgO	0-5%	4-6%
	B2O3	5-10%	0-6%
Chemical Resistance-14mm fiber; % weight loss after 1 hr boil in	H2O	1.7	0.13
	1.04 N NH2SO4	48.2	0.1
	0.1 N NaOH	9.7	2.28
Temperature	Softening Point	840℃/1545℉	748℃/1380℉
	Coefficient of Thermal Expansion-in/in/ °F x 10-7	2℃/29℉	5℃/40℉
	Specific Gravity (bare fiber)	2.52-2.61	2.49
Pristine Tensile Strength, psi		500,000	400,000
Dielectric Constant, 72 °F, 106 Hz		6.1-6.7	6.24

More Styles

Application Data

Advantages

Video

Comparison Vision

Description\ Item		Fiberglass Square Rope		Fiberglass Round Rope
Style No.		3100S	3400S	3200R	3500R
Glass Type		C-Glass	E-Glass	C-Glass	E-Glass
Cross Section		Square	Square	Round	Round
Physical Properties	Fiber Diameter	6-9 microns
	Fiber Length	Continuous Filament
Breaking Elongation		4.81% Std. 4.81% Wet
Tensile Strength		3093 - 3438 N/mm2
Elastic Recovery		100%
Thickness	English	0.1181inch to 3.9370inch
	Metric	3mm to 100mm
Density	English	74.88lb/ft³
	Metric	1.2g/cm³

Simply you can wholesale FIBER GLASS KNITTED ROPE direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and FIBER GLASS KNITTED ROPE suppliers known by the world since 2000.
