HEAT TREATED FIBERGLASS FABRIC

Description:

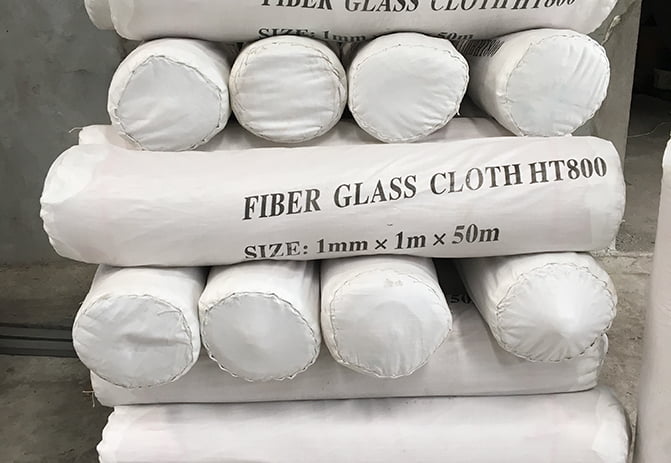

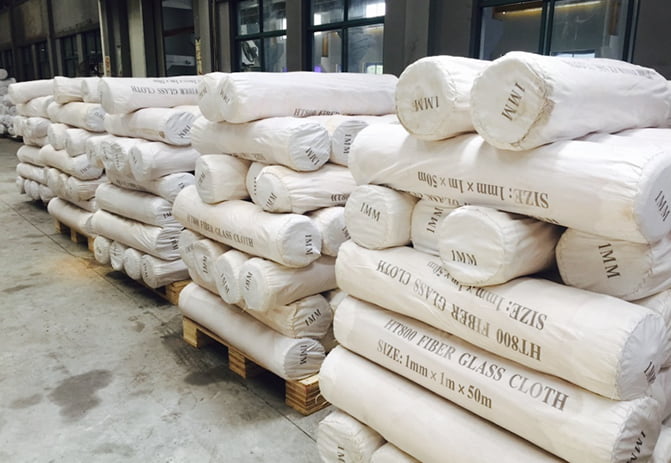

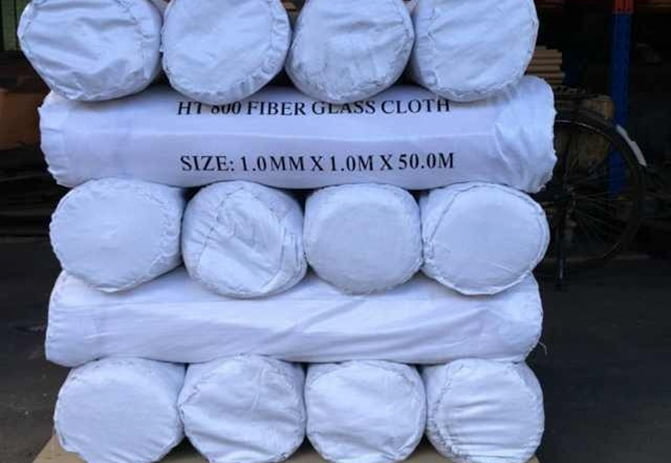

Top Fiberglass Fire blanket for welding HT800 is a typical welding fire blanket used as a welding blanket and insulation lining to shield against moderate to heavy welding sparks. HT800 fiberglass fabric is used as fabric 3784 (C800) as the basis caramelized tight and heat treated satin weave pattern results in a thicker, heavier, and stronger fabric far more resistant to heat impact from welding sparks as compared to other thinner texturized cloths.

HT800 also has a non hairy texture preventing irritation to the exposed skin which is common in other lower-quality fabrics and asbestos cloth. It is used extensively in ship fabrication, ship repairs, Oil and gas, petrochemical, and metal construction industries where heat insulation, insulation lining, and extensive welding take place.

HEAT TREATED FIBERGLASS FABRIC

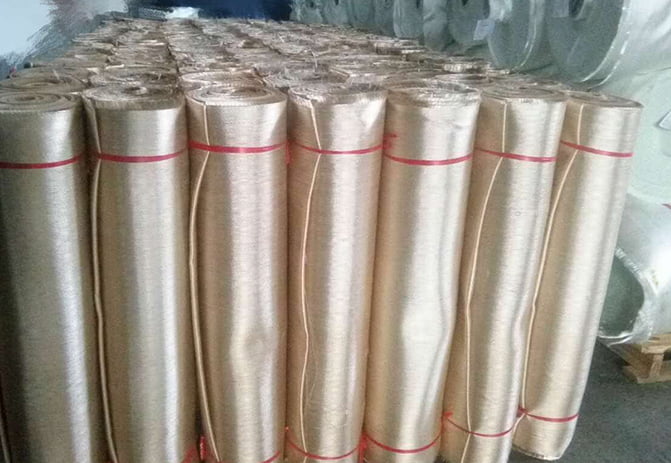

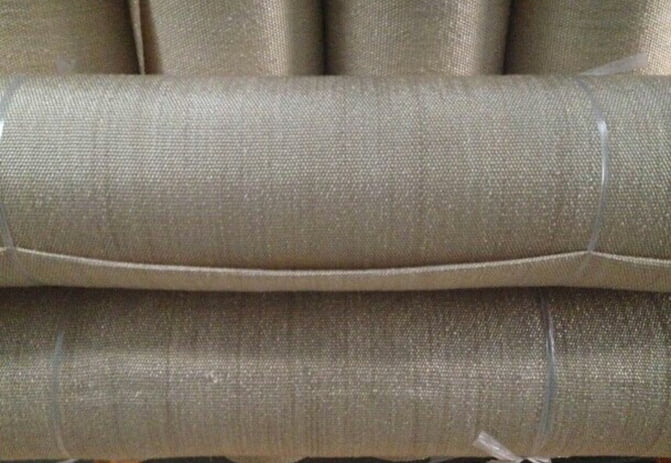

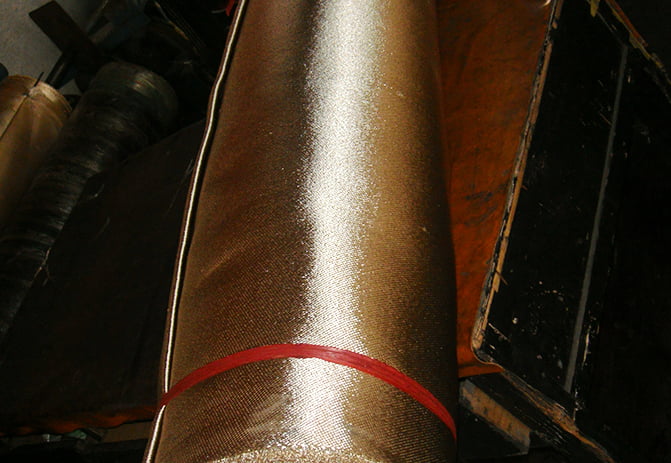

Detail Image

Product Details

Features

·Non-flammable

·High product value

·Remains flexible at high temperatures

·Maintains high tensile strength at elevated temperatures.

More Styles

Application Data
Advantages

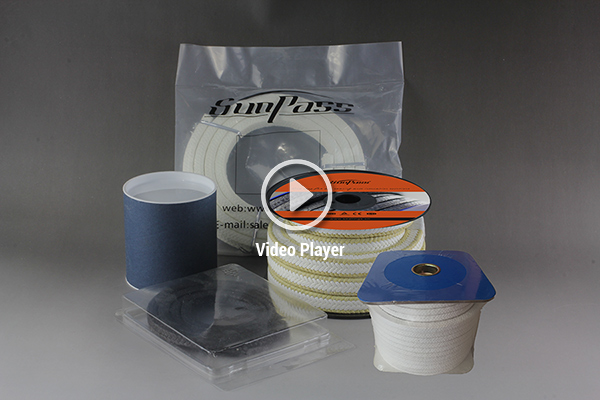

Video
Comparison Vision
Property Description Value
English Metric
Weave Style Satin - -
Thickness - 0.03inch 0.8mm
Weight - 26oz/yd2 880g/m2
Widths - 40-60inch 1-1.5m
Warp, Ends - 46inch 1m
Fill, Ends - 35inch 0.9m
Tensile Strength, Initial Warp  630ibs/in  112.6kg/cm
Fill 490ibs/in  87.4kg/cm
After 3 Hours at 1300ºF (700ºC) Warp  360ibs/in  64.2kg/cm
Fill 240ibs/in  42.9kg/cm
Temperature Resistance Maximum Continuously 1022℉ 550 °C
Thermal Conductivity - 0.09w/m-k
Elongation - 80%

Simply you can wholesale HEAT TREATED FIBERGLASS FABRIC direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and HEAT TREATED FIBERGLASS FABRIC suppliers known by the world since 2000.
