PTFE Coated Fiberglass Fabric | PTFE Fiberglass Fabric | SUNPASS

Description:

PTFE coated fiberglass fabric is made of high-performance fiberglass fabric impregnated with PTFE emulsion. It is designed for a variety of applications in different industries and features high temperature resistance, non-stick, chemical resistance and dimensional stability. Designed for a wide range of industrial applications. This series has
Optimum PTFE content for a good balance between heat transfer, release and flexibility.

We produce a variety of styles of PTFE coated fiberglass fabrics with thicknesses ranging from 0.08mm to 1mm. Our PTFE coating percentages vary from 15% to over 60%.

PTFE Coated Fiberglass Fabric | PTFE Fiberglass Fabric | SUNPASS

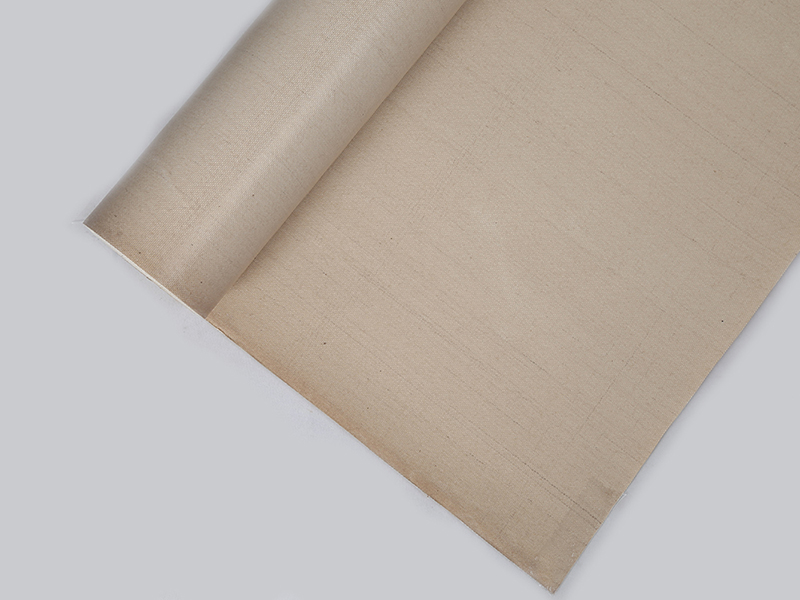

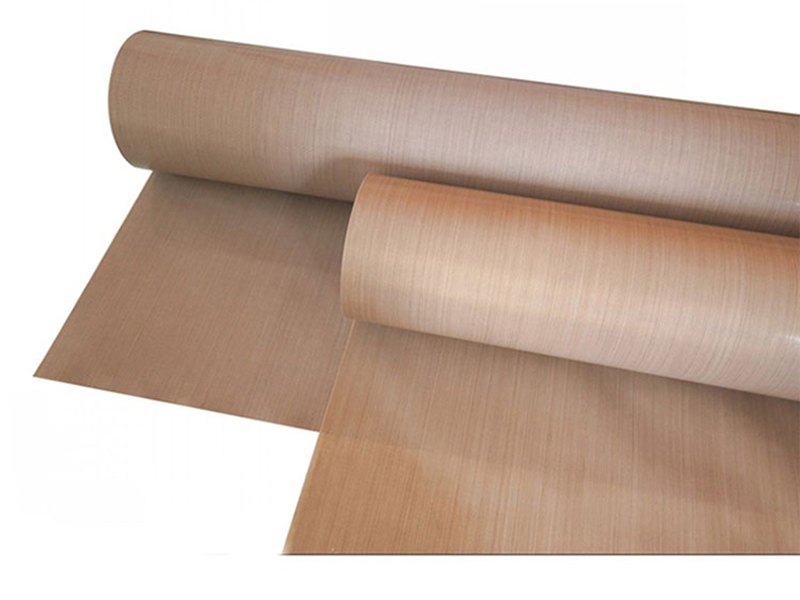

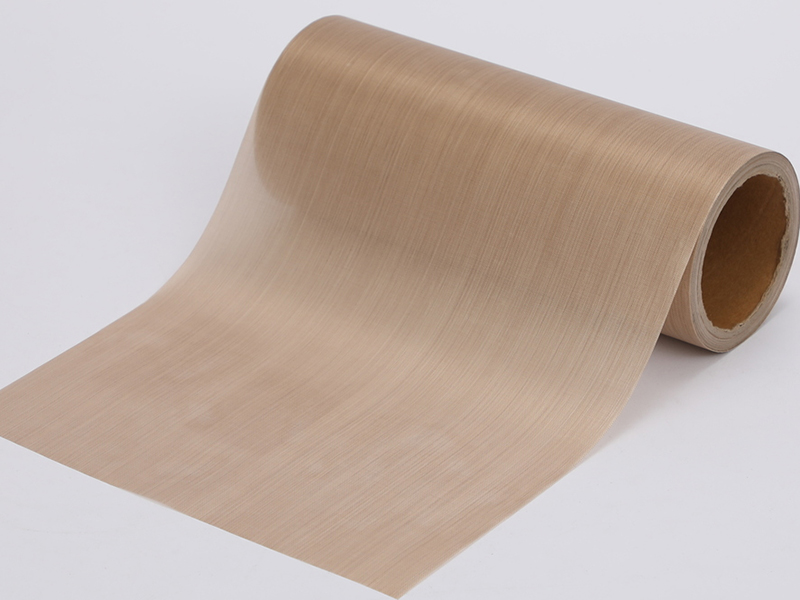

Detail Image

Product Details

Items		Data
Tensile Strength		550/450N/5cm
Temperature resistance		-140~260°C
ptfe content		53%
Tensile Strength (N/5cm)		174/130
Thickness		0.07mm-0.1
Weight		110(g/cm2)

More Styles

Application Data

Advantages

Video

Comparison Vision

* Heat sealing plastic film
* Gaskets & diaphragms
* Conveyor belt
* Food drying mats and belts
* Reusable cooking tray liners
* Adhesive tape
* Welding cloth for welding and sealing; plastic film, heat sealing liner
* Anti-static cloth

Simply you can wholesale PTFE Coated Fiberglass Fabric | PTFE Fiberglass Fabric | SUNPASS direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and PTFE Coated Fiberglass Fabric | PTFE Fiberglass Fabric | SUNPASS suppliers known by the world since 2000.

What is PTFE coated fiberglass fabric?

PTFE coated fiberglass fabric is fiberglass fabric impregnated or coated with PTFE resin. The fiberglass provides the fabric structure, while PTFE provides a low-friction, non-stick and chemically resistant surface.

What PTFE content is available?

SUNPASS states that PTFE coating percentages can range from 15% to over 60%, depending on the product style.

What thicknesses are available?

The product series is described as available in thicknesses from 0.08 mm to 1 mm, while the listed specification on this page shows 0.07–0.10 mm. These ranges should be confirmed against the current product specification before publication.

Where is PTFE coated fiberglass fabric used?

Typical applications include heat sealing, conveyor belts, selected gasket and diaphragm applications, food-processing belts, adhesive tape and welding-related applications.

How should PTFE coated fiberglass fabric be selected?

Selection should consider temperature, PTFE content, thickness, tensile strength, flexibility, surface release requirements and the intended application.
