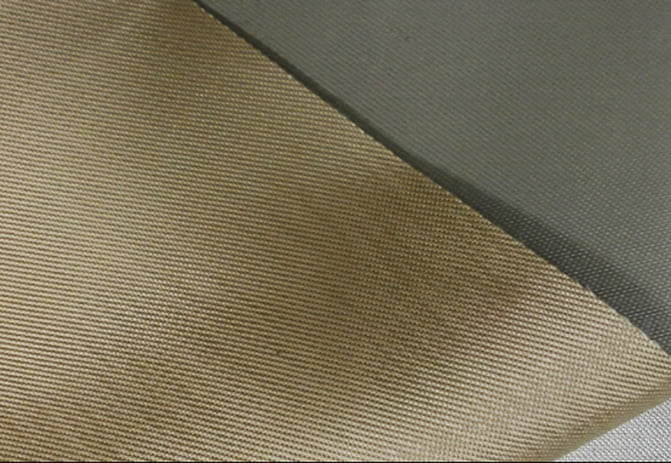

TOP SEALING PU COATED FIBERGLASS CLOTH is Polyurethane (PU) coating on the silica fiber cloth with PU coating provide a thin film, high gloss finish with exceptional weathering performance characteristics. This coating is used in virtually all industrial markets to provide a smooth durable finish that has superior resistance to corrosion, abrasion, and chemical exposure.
| Property | Description | Valure | |
| English | Metric | ||
| Nominal Hardness | Shore A | 20-95 | |
| Shore D | 50-80 | ||
| Tensile Strength | - | 2,000-12,000psi | 138-827bar |
| Tear Strength Die C | - | 100-1,200 | |
| Bashore Rebound | - | 25-60% | |
| Property | Description | Valure | |
| English | Metric | ||
| Weave | Satin | - | - |
| Yarn | Warp | ECG 37 1/2 | EC9 136 1X2 |
| Weft | ECG 37 1/2 | EC9 136 1X2 | |
| Thread Count | Warp | 45 per inch | 18 per cm |
| Weft | 33 per inch | 13 per cm | |
| Tensile Strength (Min) | Warp | 488 lbs/inch | 4400 N/5cm |
| Weft | 377 lbs/inch | 4300 N/5cm | |
| Temperature Resistance |
- | 1000℉ | 550℃ |
| Total Weight | - | 16-33oz/y2 | 600-1200g/m2 |
| Total Thickness | - | 0.03-0.05inch | 0.76-1.35mm |
| LOI | <10% | - | - |
| Silica Content | >96% | - | - |
Other size can also be manufactured as request.
Simply you can wholesale PU COATED FIBERGLASS CLOTH direct from manufacturers.
Features
· Soft
· Good Flexibility
· Good Abrasion Resistance
· Solvent Resistant
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and PU COATED FIBERGLASS CLOTH suppliers known by the world since 2000.
